HILO-test IPG 1201 HV - 임펄스 제너레이터 (0.2-12 kV)

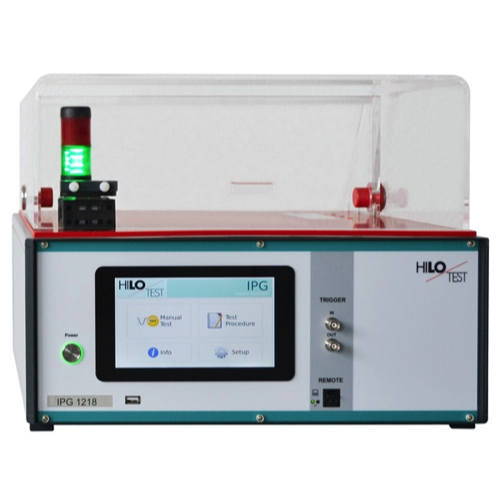

Mainframe

Microprocessor: Controlled touch panel 7”, capacitive

Optical Ethernet Interface: For remote control of the generator (Optional)

Interface for saving reports: USB

External Trigger: Input/Output Switch/10V

Connector: For external safety interlock loop 24 V=

External warning lamps: Red and green, 24 V=, 40 mA

Mains power: 90V – 264V / 50/60 Hz

Dimensions of desk top case (W * H * D): 450180500 mm³

Weight: 18 kg

Generator section

Peak value of impulse output voltage (adjustable, ± 5%): 0.2-12 kV ± 5%

Max. stored energy: 0.072 J

Loading resistor (RS): 15 MΩ

Energy storage capacitor (C1): 1.0 nF

Series resistor (R1): 1 kΩ

Discharging resistor (R2): 100 MΩ

Voltage divider (R3): 0.1 MΩ

Output polarity (selectable): Positive/Negative

Charging time: < 2 sec

Trigger:

a) Manual: Push button

b) External: Trigger input switch

c) Internal: Automatic, adjustable via test procedure Program

Impulse counter (selectable): 1 - 1000 pulses

Repetition time (selectable): 12 Imp./min

Measurement of insulation resistance (Riso):

Test voltage: 500 V=

Measuring range: 0.5 - 20 MΩ ± 5%
