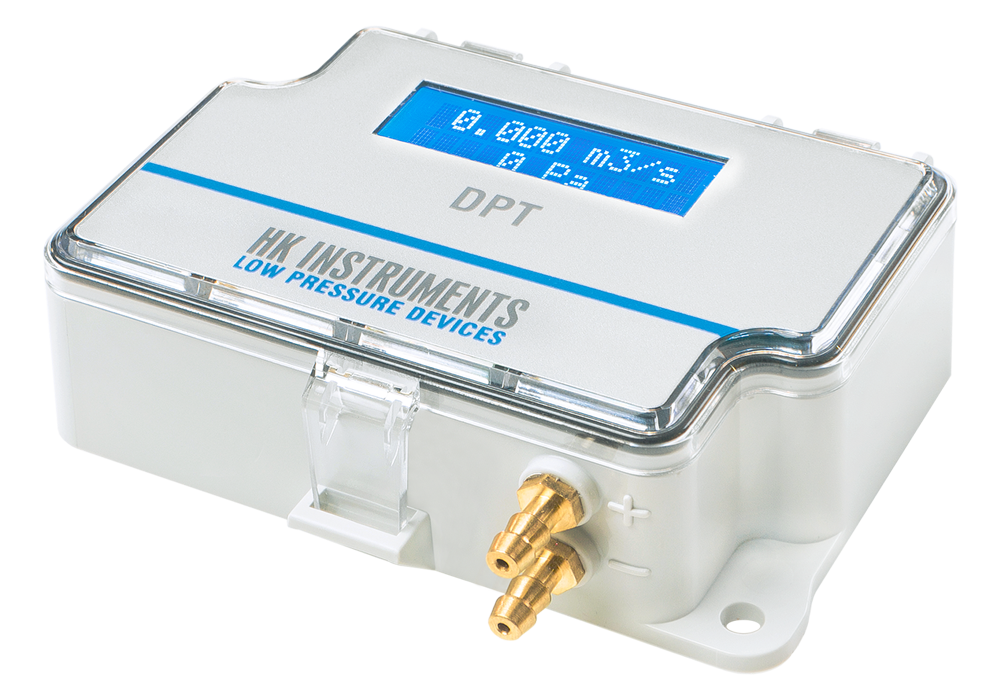

HK Instruments DPT-FLOW-Batt-7000-D Air flow and velocity transmitter (0−7000 Pa)

Measurement ranges (Pa): 0−7000 Pa

Accuracy (from FS): ±1.5 % (Including: general accuracy, temperature drift, linearity, hysteresis, long term stability, and repetition error)

Zero point calibration: by pushbutton

Measuring units: Pressure: Pa, kPa, mbar, inchWC, mmWC, psi;  Flow: m3/s, m3/hr, cfm, l/s, m/s, ft/min

Supply voltage: 9 V battery

Current consumption: ~20 mA on active mode

Operating temperature: -20…+50 °C

Response time: 1.0−10 s, selectable via menu

Protection standard: IP54
