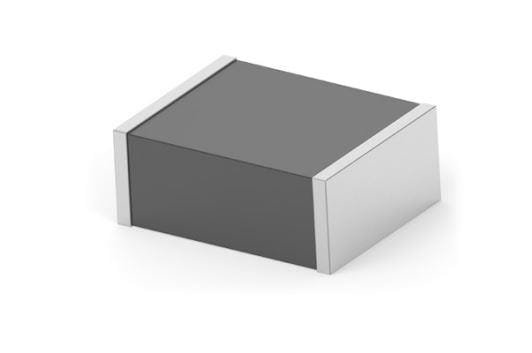

Holsworthy - TE Connectivity BMC2EY0052AN 효과적인 EMI 보호 BMC 1210 52R 25% A Gen C

Width: 2.5 mm

Height: 1.3 mm

Length: 3.2 mm

Impedance: 52 Ohms

Tolerance: 25 %

Test Frequency: 100 MHz

Termination Style: SMD/SMT

Maximum DC Current: 400 mA

Number of Channels: 1 Channel

Maximum DC Resistance: 300 mOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
