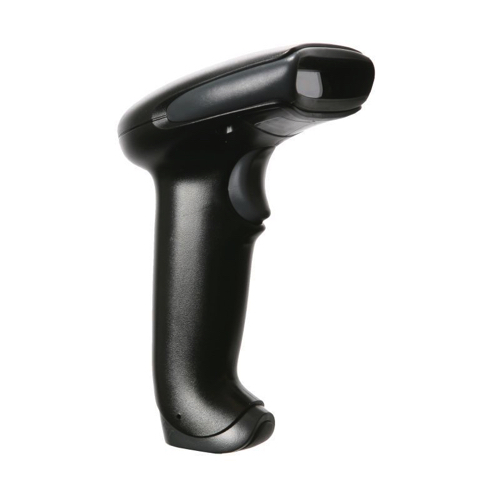

Honeywell Hyperion 1300g Linear-Imaging Scanner (Standard 1D & GS1 DataBar™ symbology)

Mechanical/Electrical

Dimensions: 150 mm x 112 mm x 79 mm (5.9˝ x 4.4˝ x 3.1˝)

Weight: 160 g (5.6 oz)

Input Voltage: 5V ± 5%

Operating Power: 1000mW; 200 mA (typical) @ 5V

Standby Power: 625mw; 125 mA (typical) @ 5V

Host System Interfaces: Multi-Interface/includes RS232 (TTL +5V, 4 Signals)/KBW/USB (HID keyboard, serial, IBM OEM); RS-232C (±12V) and IBM RS485 supported via adapter cable

Auxiliary Ports: N/A

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 0 to 95% non-condensing

Drop/Tumble: Designed to withstand 50 drops on concrete from 1.5m

Environmental Sealing: IP41

Light Levels: 0-70,000 lux (direct sunlight)

Scan Performance

Scan Pattern: Single line

Motion Tolerance: 20 in (51cm) per second

Scan Rate: Up to 270 scans per second

Print Contrast: 20% minimum reflectance difference

Pitch, Skew: 65°, 65°

Decode Capabilities: Reads standard 1D and GS1 DataBar™ symbologies
