MECHANICAL/ELECTRICAL

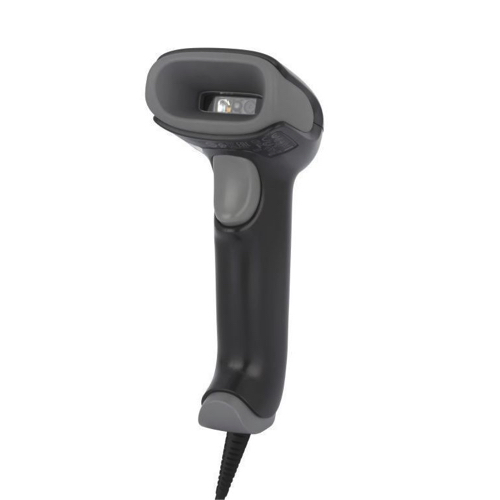

Scanner Dimensions (L x W x H): 82 mm x 62 mm x 169 mm (3.2 in x 2.4 in x 6.6 in)
Scanner Weight: 130 g (4.6 oz)
Input Voltage: 4.0V DC to 5.5V DC
Operating Power: 2 W (400 mA @ 5V DC)
Standby Power: 0.45 W (90 mA @ 5V DC)
Host System Interfaces: USB certified (USB type C cable is available), Keyboard Wedge, RS-232
Keyboard Support: Support 84 international keyboards
User indicators: Good Decode LED, beeper (Adjustable tone and volume)
ENVIRONMENTAL
Operating Temperature: 0°C to 50°C (23°F to 122°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Electrostatic Discharge (ESD): ±8 kV indirect coupling plane, ±15 kV direct air
Humidity: 0% to 95% relative humidity, non-condensing
Tumble (Scanner): 1,000 0.5 m (1.6 ft) tumbles (impacts)
Drop (Scanner): Engineered to withstand 30 drops to concrete from 1.8 m (5.9 ft)
Vibration (Scanner): Withstands 5G peak from 5 to 300Hz
Environmental Sealing (Scanner): IP52
Light Levels: 0 to 100,000 lux (9,290 foot-candles)
SCAN PERFORMANCE
Scan Pattern: Area Image (1040 x 720 pixel array)
Frame Per Second: 60FPS
Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Print contrast: 15%
Scan Angle: Horizontal: 39.2° Vertical: 27.4°
Roll, Pitch, Skew: ±180°, ±65°, ±70°
Illumination: Warm white LED (CCT 2700K)
Aimer: Red dot LED, 624nm peak wavelength
Decode Capabilities1:
1D: Code 39, code 128, code 93, EAN, UPC,code 11, code 32 Pharmaceutical, codabar,, China Post, GS1 databar
2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode,
Digital Watermarking: Digimarc
OCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 points OCR typeface
