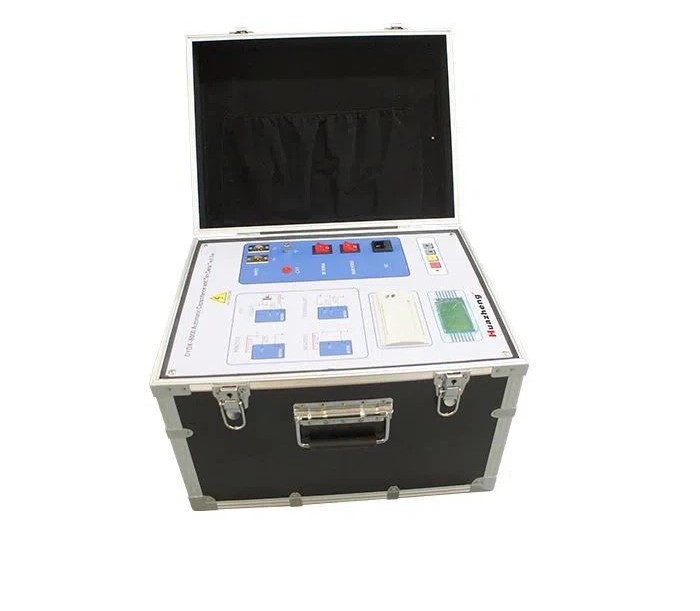

Huazheng DYDX-8000 Automatic Capacitance and Tan Delta Test Set

High voltage output: 0.5~10kV

Increasing by 500V for each level, a total of 20 levels, capacity: 1500VA

Accuracy: tgδ: ± (reading *1.5% +0.04%)

Cx: ± (reading * 1.5% +5 PF)

Resolution: tgδ: 0.01% Cx: 1pF

Measuring range: 0.01% <tgδ <100%

Internal high pressure: 3PF ～60000PF/10KV 60PF～1µF/0.5KV

External high pressure: 3PF ～1.5µF/10KV 60PF～30µF/0.5KV

Power supply: AC 220V ± 10% 50/60 ± 1Hz

Measuring method:

Working frequency: 50(50Hz measuring), 60(60Hz measuring)

Different frequency: 50D(45Hz/55Hz measure each time)

60D (55Hz/65Hz measure each time)

Automatic frequency conversion

Harmonic adaptation: ≤ 3%

Application condition: -15℃－50℃

Relative humidity <80%

Dimension: 460 (L) × 345 (W) × 345 (H)

Weight: 35 kg
