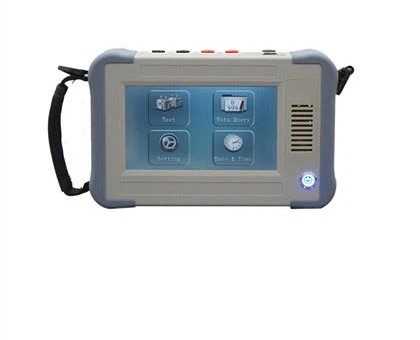

Huazheng HZ-3110-I Handheld Winding Resistance Test Set (50KΩ, 10A)

Test current: <20mA

Measuring range: 100Ω-50KΩ

Test current: 40mA

Measuring range: 1Ω-200Ω

Test current: 200mA

Measuring range: 100mΩ-50Ω

Test current: 200mA

Measuring range: 100mΩ-50Ω

Test current: 1A

Measuring range: 10mΩ-10Ω

Test current: 3A

Measuring range: 5mΩ-3Ω

Test current: 10A

Measuring range: 0.5mΩ～0.2Ω

Accuracy:

±(0.5%+2)

±(0.2%+2)

Minimum resolution: 0.1μΩ

Operation method: Touch screen operation

Dimensions:

Host：252*160*65(mm)

Outer box：425*335*210（mm）

Weight:

Host：2KG

Outer box：8KG

Battery Specifications: 14.8V   5200mAh

Test lead length: Standard 5 meters, length can be customized
