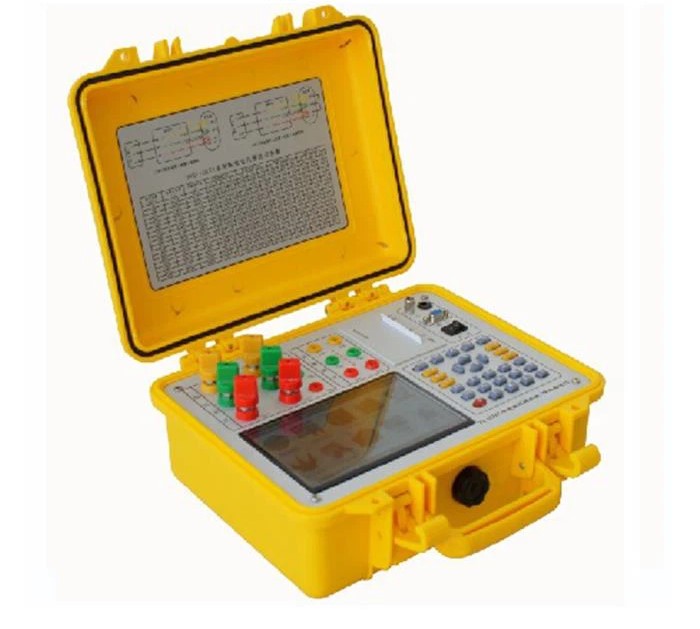

Huazheng HZ-6000C Transformer Capacity & Loss Tester
제조사Huazheng (이 브랜드의 다른 제품 보기)
ModelHZ-6000C
문의하기
안전한 결제
품질 보장
간편 교환 및 반품
배송 가능
Input Characteristic
Voltage test range: 0~750V, wide range
Current Test range: 0~5~100A, auto ranging.
Accuracy
Voltage：±0.2％
Current：±0.2％
Power：±0.5%（CosΦ>0.1)，±1.0%（0.05<CosΦ<0.1）
Working Temperature
Working Temperature：－10℃~ +40℃
Power supply
Power supply：AC 160V~265V
Insulation
insulation resistance between voltage/current input terminal andhousing: ≥100MΩ
Power Frequency Withstand voltage between power supply input andhousing: 2KV (effective value), one minute
Dimension：32cm×24cm×13cm
Weight：3Kg
