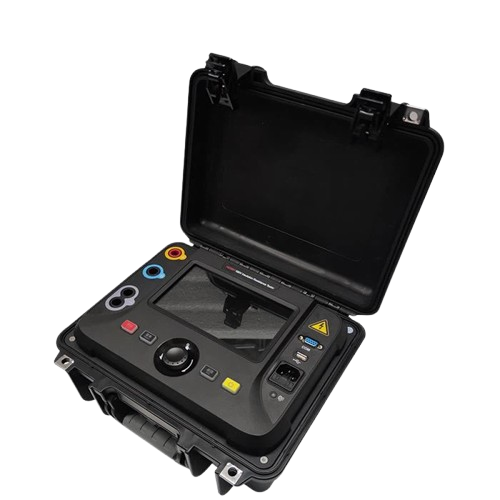

Huazheng HZ3251 Insulation Resistance Tester (-10%～+50%)

Test voltage:100V,250V,500V,1000V,2500V,5000V,10000V

Dimensions: 320mm (length) × 270mm (width) × 150mm (height)

Weight: 3.9kg

Relative humidity: <90% no condensation

Operating temperature: -10%～+50%

Voltage output accuracy: 0%～+10%

Short circuit current: 1mA～6mA,adjustable, step 1mA

Measuring range: AC/DC 10V～660V,±(2%+3 characters)

Precision: ±(2%+3 words)

Measuring range:10nF～25nF,test voltage ≥100V

AC power: 85～264Vms, 59/60Hz, 65VA
