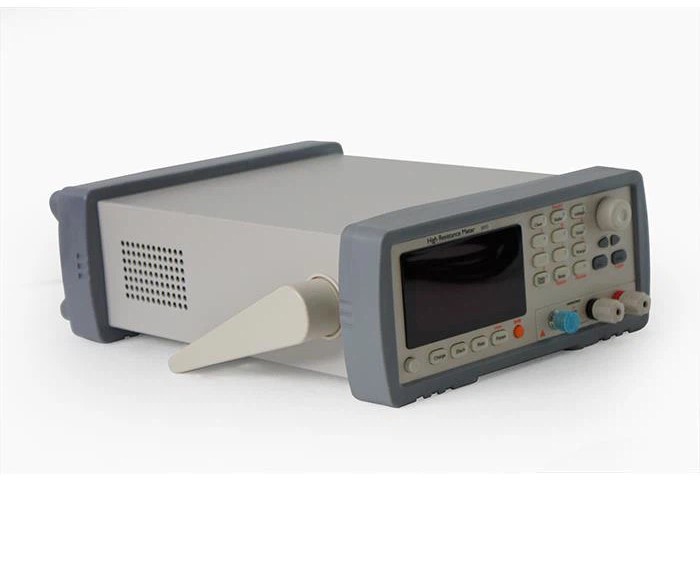

Huazheng HZ683 Megohmmeter High Insulation Resistance Meter (10TΩ, 1000VDC)

Parameter: Leakage current and insulation resistance

Output Voltage: 1V~1000VDC

Accuracy: <10G:3%, ≥10G: 5%, ≥100G:10%

Measurement Range:

100kΩ~10TΩ

10V: 100kΩ~100GΩ;100V: 1MΩ~1TΩ;1000V: 10MΩ~10TΩ

Max Reading: 9999

Range: Automatic and Manual

Speed: 55 times/second,15 times/second,3 times/second

Adjustment: Open-circuit Zero-Adjust for each range

Result Display: Show, current, resistance, peak value, and sorting result

Charging Timer: 999.9s

Comparator: 30 sets record,GD/NG Beep: GD,NG,OFF setting.

Interface:

RS-232C interface Handler interface

(AT682SE optional interface)

Others: VFD four color high-definition screen,keypad lock and data hold function

GENERAL  FEATURES

Power Supply: Voltage: 198VAC~240VAC  Frequency: 50Hz  Power: Max 30VA

Dimension: 264(W)mm x 107(H)mm x 350mm(D)

Weight: 5kg
