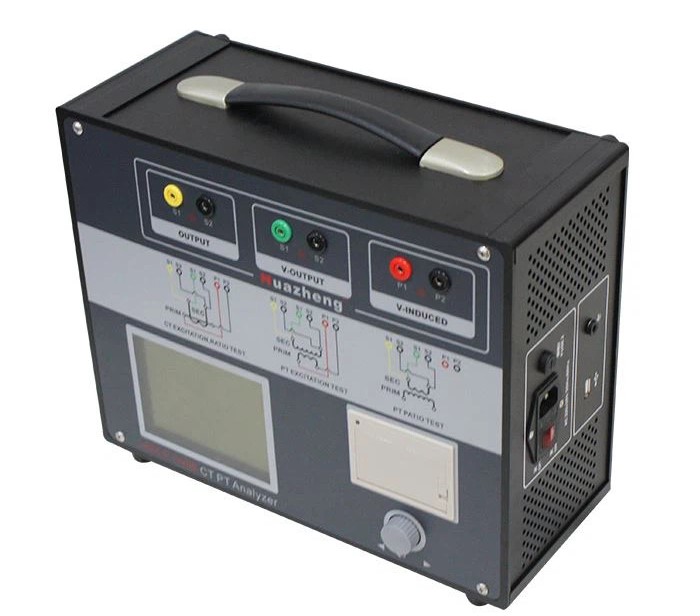

Huazheng HZCT-100B CT PT Analyzer

Usage: CT， PT

Output: 0~180Vrms，12Arms，36A（peak value）

Voltage measurement accuracy: ±0.1%

CT Ratio

Range: 1~40000

Accuracy: ±0.05%

PT Ratio

Range: 1~40000

Accuracy: ±0.05%

Phase

Range: ±2min

Accuracy: 0.5min

DC resistance

Range 0~300Ω

Accuracy: 0.2%±2mΩ

Burden

Range: 0~1000VA

Accuracy: 0.2%±0.02VA

Power supply: AC220V±10%，50Hz

Environmental Conditions

Operating temperature: -10℃~50℃

Humidity: ≤90%

Weight and Dimensions

Dimensions: 365 mm×290mm×153mm,

Weight: <10kg
