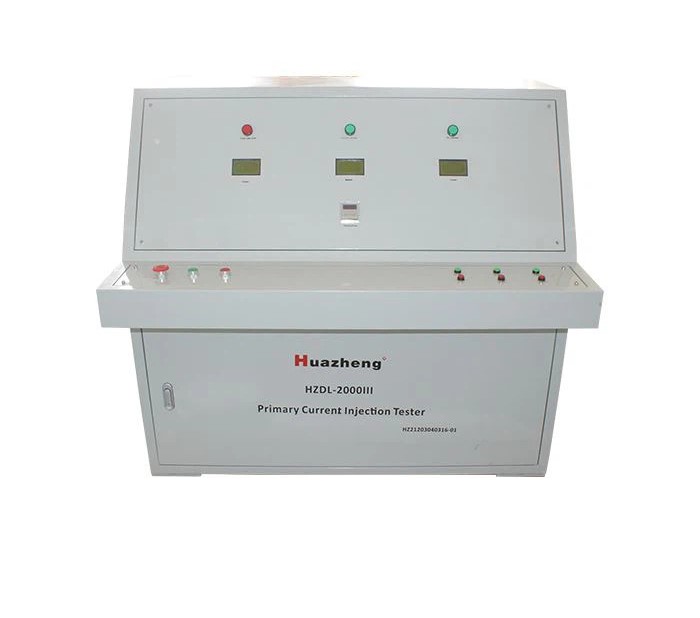

Huazheng HZDL-2000III Three Phase Primary Current Injection Tester (10KVA *3)

Input voltage: AC 380 50Hz three-phase four-wire.

Power rate: 10KVA *3

Output current: AC0～2000A steplessly adjustable

Output voltage: >5V

Output Waveform: The output current is a standard sine wave with tiny burrs, which is better than the power system requirements and standards, and the ripple coefficient is less than 0.3%.

Current stability: 0.2%

When the current is 2000A, the current injection time can reach 30 minutes

Can test the ratio and polarity of CT

The instrument has a timed emergency stop function

A B C three-phase can set different current output values for simultaneous output.
