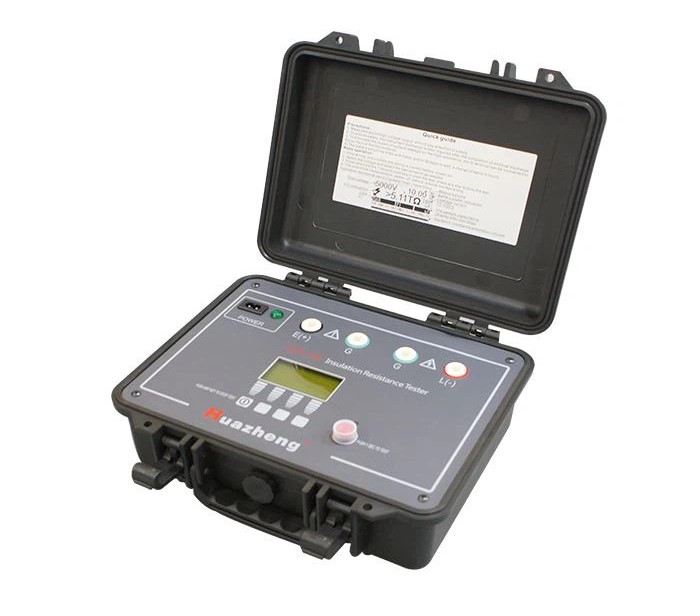

Huazheng HZJY-15K Insulation Resistance Tester

Safety Standard

IEC 61010-1 CAT.IV 600V

IEC 61326 EMC specification: test, control and electrical equipment for testing

IEC60529 IP64 （Outer closed state）

Battery：16.8V Lithium ion rechargeable battery

Battery Life：10000V@100M， 4 hour

Size（L x W x H)：37cm x 27cm x 17cm

Weight：3.6kg

Test voltage accuracy: the nominal value 100% to 110%

Voltage measurement accuracy：5%+3V

Current test range：10mA

Current measure precision：5%+0.2nA

Short-circuit current： 5mA

Capacitance test range：20uF

Capacitance testing accuracy：15%+0.03uF

Insulation resistance testing range and accuracy: T: 23±5ºC，RH: 45 – 75%
