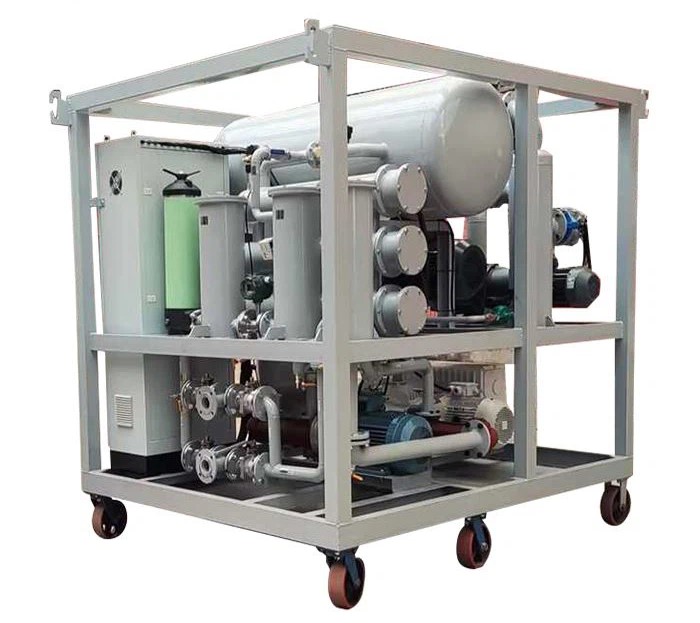

Huazheng HZLY-50 Transformer oil dehydration machine (50L/min)

Nominal flow rate: 3000L/h

Oil filter capacity: 50L/min

Ultimate vacuum degree: ≤2000Pa

Working pressure: ≤0.3Mpa

Working oil temperature: 40～70°C

Power supply: 50Hz, 380V, three-phase three-wire

Heating power: 1×30Kw

Total power: 33kw

Operating noise: ≤75dB(A)

In/Out port diameter: 32/32mm

Dimensions: 150×95×137cm

Equipment weight: 290Kg

Continuous working time: ≥200 hours

Average trouble-free working time: ≥5000 hours
