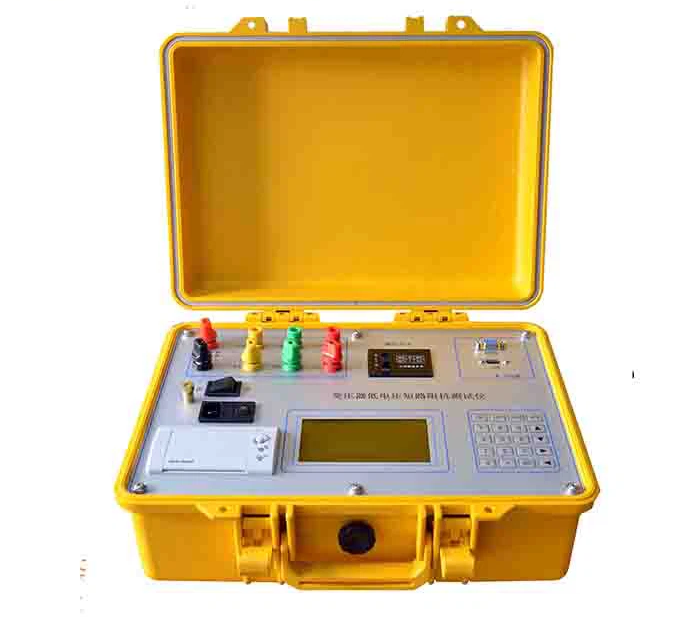

Huazheng HZXW－800 Low-voltage Transformer Short-circuit Impedance Tester

Voltage measurement range: 5V ~ 400V

Accuracy: 0.2 degree

Current measurement range: 0.1A ~ 20A

Accuracy: 0.2 degree

Conditions of Use

Ambient temperature: -10 ℃ ~ 50 ℃

Humidity: ≤ 85% RH

Power supply: AC220V ± 10%

Power frequency: 50 (± 10) Hz

Host weight: 6kg

Test results to determine reference:

Impedance error is within ± 3%: the transformer can operate normally.

Impedance error is ± 3% - ± 5%: transformer should be test regularly.

Impedance error more than ± 5%: transformer should outage.
