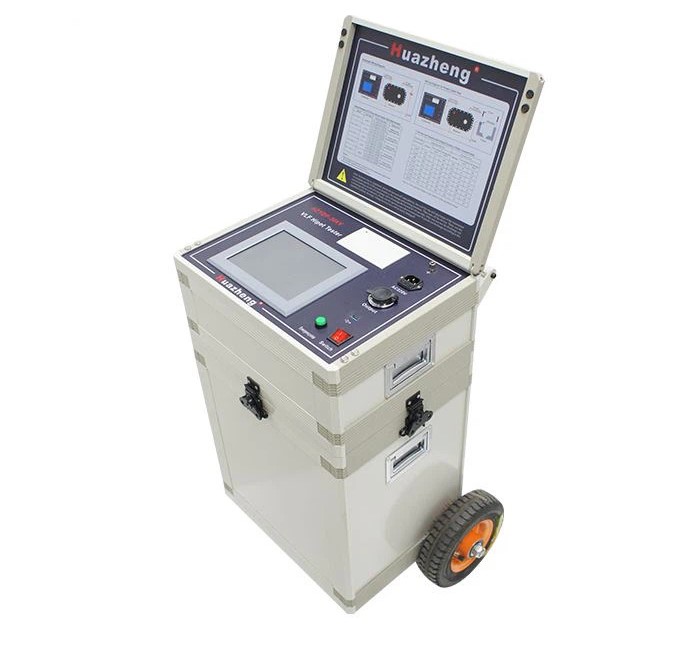

- Peak Voltage: 80kV
- Measuring Range:
≤1.1μF @ 0.1Hz
≤2.2μF @ 0.05Hz
≤5.5μF @ 0.02Hz
- Weight:
Controller: 5kg
Booster: 45kg
Purpose: Cables, generators withvoltage of 35kV and below
Power supply: 220V±10%, 50±5%Hz
Note: When a portable generator is used for supplying power, it is required that output voltage and frequency of the generator shall be stable (generally it is required that power shall be greater than 3 kW, the frequency shall be 50Hz, and voltage shall be 220V±5%), otherwise some assistance measures shall be used to stabilize output of the generator.
Output voltage precision:
Degree of instability for peak value of output high voltage: ≤1%
Degree of instability for frequency of output voltage: ≤3%
Distortion rate of output voltage waveform: ＜5%
The instrument has the function of not burning the booster and the mainframe in case of power failure and sudden shutdown during the operation.
Service environment:
Temperature: －10'C～＋40'C,
Humidity: ≤85%RH
