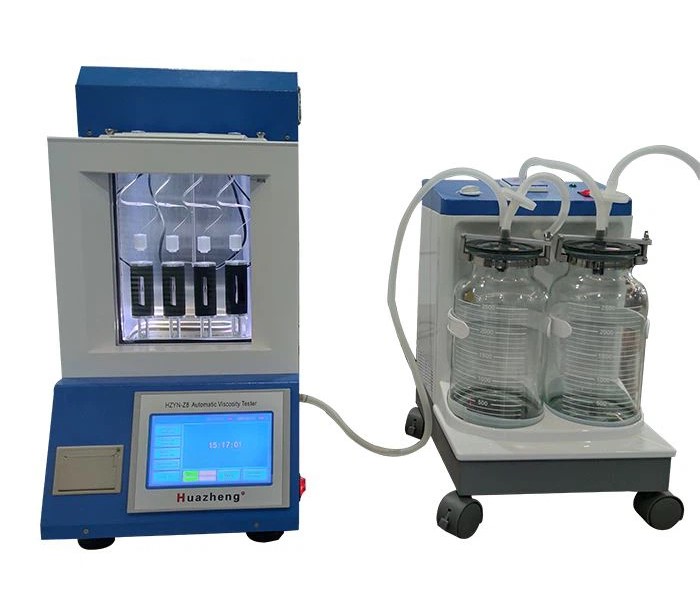

Huazheng HZYN-Z8 .Automatic Kinematic Viscosity Tester (RT ～ 100℃, 0.75 ~ 6800 mm2/s)

Display Mode: LCD

Temperature range: room temperature ～ 100 ℃ (circulating refrigerator is required when the preset temperature is lower than room temperature);

Temperature control accuracy: ±0.01℃.

Resolution: 0.01°C

Measuring range: (0.75 ~ 6800) mm2/s

Viscosity resolution: 0.0001mm2/s

Oil sample consumption: 0.1 ～ 2.0 ml

Viscometer type: folded tube type (Hou Shi)

Experimental hole: 4 holes

Liquid level detection: infrared photoelectric detection

Temperature calibration: 6-point calibration

Data storage: 100 sets of test results

Temperature sensor: imported stainless steel PT100 temperature probe

Heating mode: electric heating unit, maximum heating power 1500W, PID control

Oil bath volume: about 10L

Folding tube viscometer cleaning: manual

Folding tube viscometer drying: automatic

Data output：RS232

Clock display: year, month, day, hour and minute (PD)

Ambient temperature: 5℃～40℃
