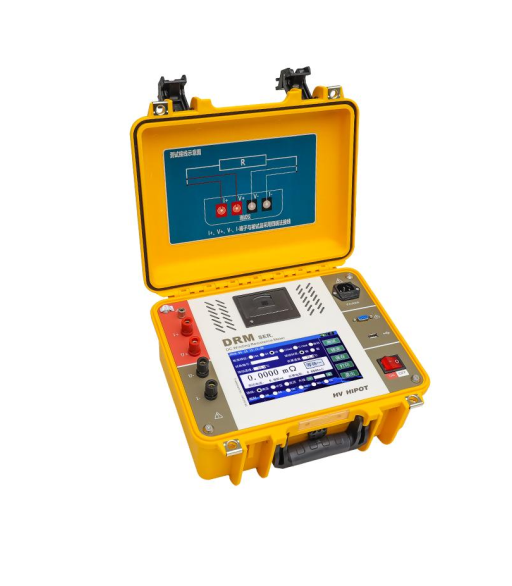

HV HIPOT DRM-10W DC Winding Resistance Meter (200μΩ~ 50kΩ)

Output Current: 10A, 5A, 1A, 100mA, <10mA

Measurement Range:

10A range: 200μΩ ~ 1.5Ω

5A range: 5mΩ ~ 3.0Ω

1A range: 20mΩ ~ 15Ω

100mA range: 200mΩ ~ 150Ω

<10mA range: 2Ω ~ 50kΩ

Accuracy:

10A: ±(0.2% of reading + 1μΩ)

5A: ±(0.2% of reading + 0.005mΩ)

1A: ±(0.2% of reading + 0.02mΩ)

100mA: ±(0.2% of reading + 0.2mΩ)

<10mA: ±(0.2% of reading + 2mΩ)

Power Supply: AC 220V ~ 240V, 50/60Hz; 2.5A

Display: 7-inch full touch screen

Operating Temperature: -10℃ ~ 50℃

Relative Humidity: ≤85%, non-condensing

Dimensions: 330mm × 285mm × 150mm

Weight: 4.1 kg
