PD 2-Channel Signal Acquisition Server:
Specifications:
CPU Operating Frequency: 1.2GHz
Operating System: Embedded Linx OS
Wired Network Port: LAN Network Port
Wireless Network Port: Integrated Wi-Fi
System Running Memory: 512MB
System Storage Memory: 256MB
HFCT Sensor:
Frequency Range: 0.5 ~ 100MHz
Accuracy: ±1dB
Sensitivity: 15mV/1mA
Dynamic Range: 60dB
Measurement Range: 0-1000mV
Resolution: 1dB
Signal Acquisition Frequency: 100MHz
Industrial Handheld Tablet:
CPU: Intel® Quad Core Atom™ Z3735F
GPU: Intel® HD Graphics (Gen7)
Flash Storage: 32GB
RAM: 2GB
Operating System: Windows 10
Display: 8.1-inch IPS Display, 1280x800 Resolution
Network Connectivity: Wifi and Bluetooth
Battery: 3.7V 8500mAh Lithium-Ion Polymer Battery
Operating Environment:
Operating Temperature: -20°C ~ 50°C
Ambient Humidity: 0 ~ 90%RH (Relative Humidity)
Protection Level: IP54

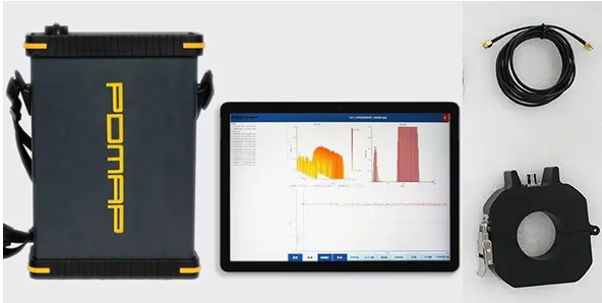

Included Items:
GDPD-414H PD Signal Acquisition Server (2-Channel): 1 unit
8.1-inch Industrial Tablet: 1 unit
External HFCT Sensor (Optional): 1 unit
Signal Acquisition Cable: 1 set
Charger: 1 unit
Server Carrying Case: 1 unit
Operation Manual: 1 copy
Factory Inspection Certificate: 1 copy
Accessory Box: 1 unit
