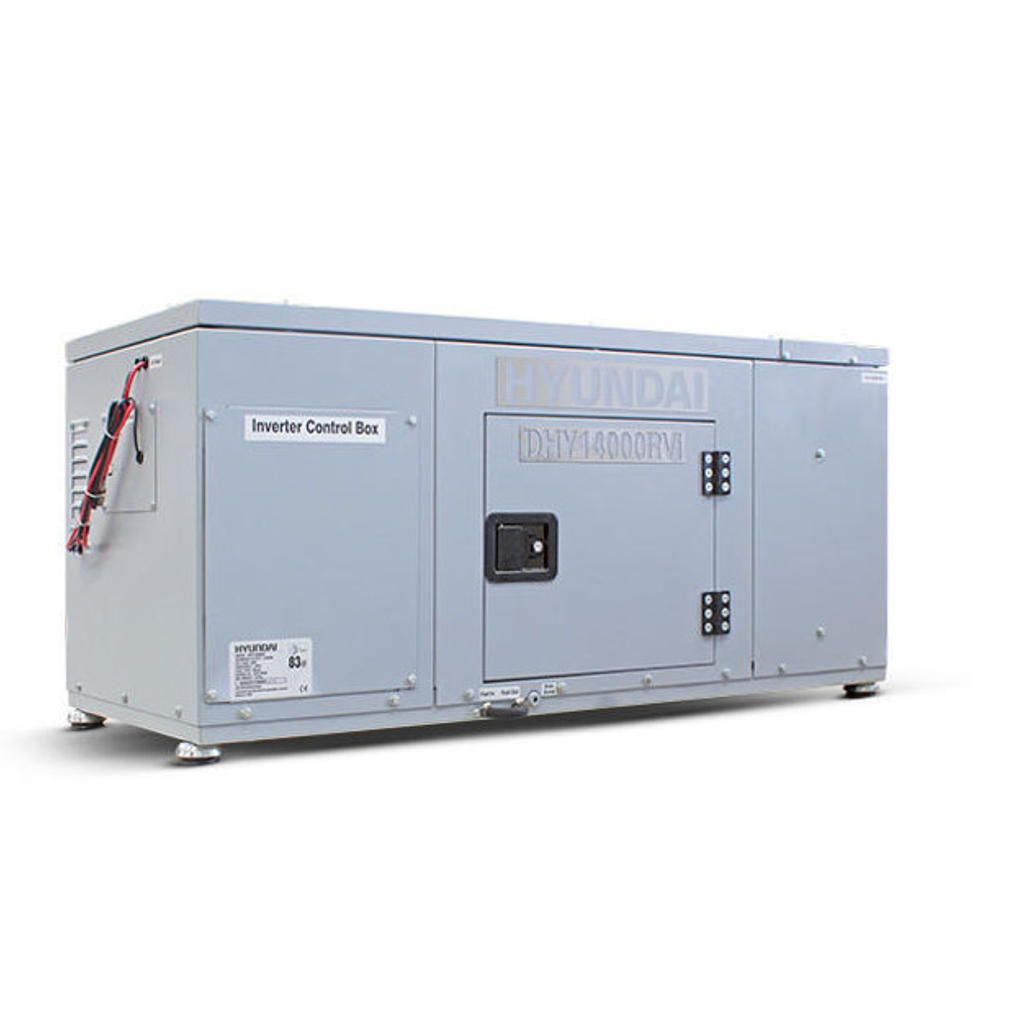

Hyundai DHY14000RVi Underslung Vehicle Mounted RVi Generator (14kW)

Dimensions (H x W x L) (mm): 1520 x 604 x 750

Dry Weight: 345 kg

Engine Model: Yanmar 3TNV76 Diesel Engine Model

Engine Type: Vertical

Frequency (Hz): 50

Fuel Tank Capacity (L): Dependant On Vehicle Fuel Tank

Maximum Power (kW): 14

Oil Capacity (ml): 1.6-3.8

Rated Power (kW): 12

Rated Speed (RPM) (rpm): 1600-2400

Start Method: 12v Electric Start

Voltage (VAC): 110 / 220 / 240 / 380

Recommended Oil Type: 10w40 / 15w40
