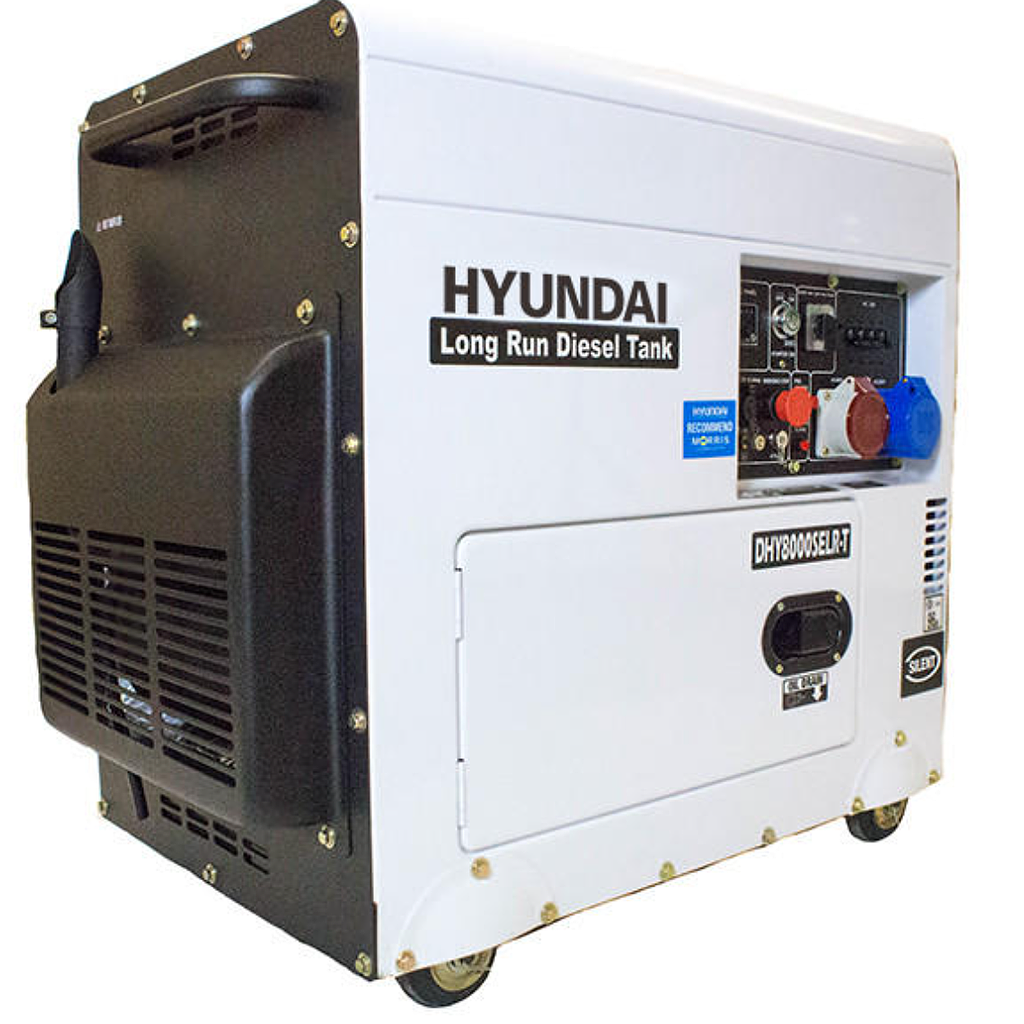

Hyundai DHY8000SELR-T Diesel Generator (5.8kW / 7.5kVA, 230V & 400V)

Rated/Prime kVA: 6.3

Rated/Prime kW: 5

Max/Standby kVA: 7.25

Max/Standby kW: 5.8

Phase: Single / 3-Phase

Voltage: 230 / 415

Connection Method(s): Sockets - 1 x 400V/16A 1 x 230V/32A

Rated Speed (RPM): 3000

Frequency (Hz): 50

Max/Continuous Current (Amps): 230v 25 / 21 - 400v 10.5 / 9

Power Factor (Cosφ): 1 (Single Phase) / 0.8 (3-Phase)

Fuel/Power Source: Diesel

Max Engine Power (hp): 12

Engine Displacement (CC): 456

No. of Cylinders: 1

Recommended Oil Type: 15w40 / 10w40

Oil Capacity (Litres): 1.65

Oil Filter Part No.: D450-B9+D450-B8

Aspiration: Natural

Fuel Regulation/Governor System: Mechanical

Fuel Consumption (100% Load) [Litres]: 1.71

Fuel Filter Part No.: D450-R05

Cooling: Forced Air-Cooled

Alternator Model: D450/500-S01-2

Breakers: 3P 9.5A 1P 21A

Alternator Type: Brushed

Voltage Regulation: AVR

Air Filter Part No: D450-I4

Net Weight (kg): 158

Gross Weight (kg): 167

Wheel Kit: Yes

Dimensions L x W x H (mm): 960 x 560 x 890

Battery (Ah): 12v 36a/h

ATS / MTS Compatible: Yes

Control Panel: LED3 DISPLAY
