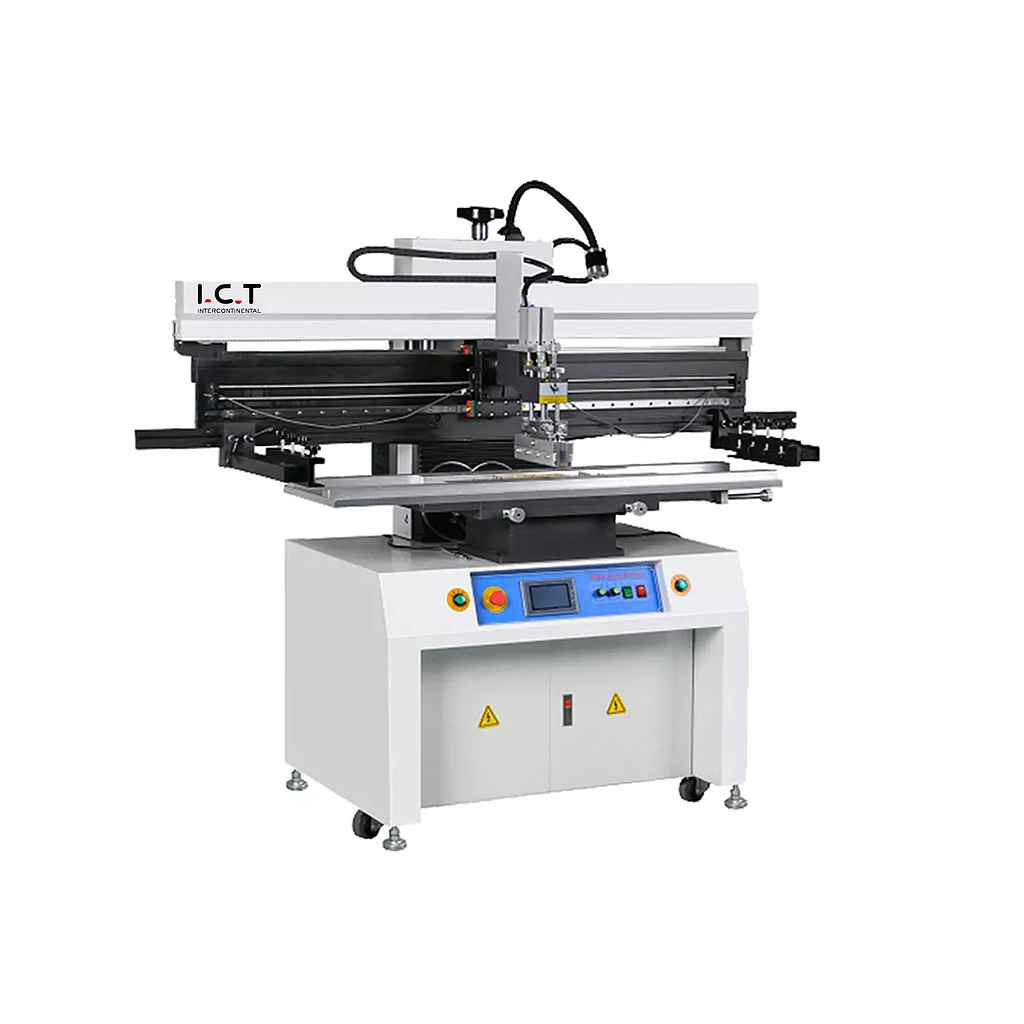

I.C.T I.C.T-P12 High Precision Semi-Automatic SMT Screen Stencil Printer in SMD Assembly Line (1200*350mm)

Accuracy: +/- 0.05mm

PCB Size: 1200 x 350 mm

Platform size: 1350 x 400 mm

Stencil Size(mm): 370*470-1500*650

PCB Thickness: 0.2 - 6 mm

Stencil Positioning: Manual

Cycle Time: < 12 Sec.

Power Consumption: 220 W

Power Supply: 1 -PH, 220VAC 50/60HZ

Air Pressure: 4.5-6 kg/cm

Squeegee Speed: 0-200mm/sec

Dimension: 1660x750x1650 mm

Weight: 356 Kg

Squeegee Length: 250mm

Platform Height: 950mm

Option: Special size can be customized
