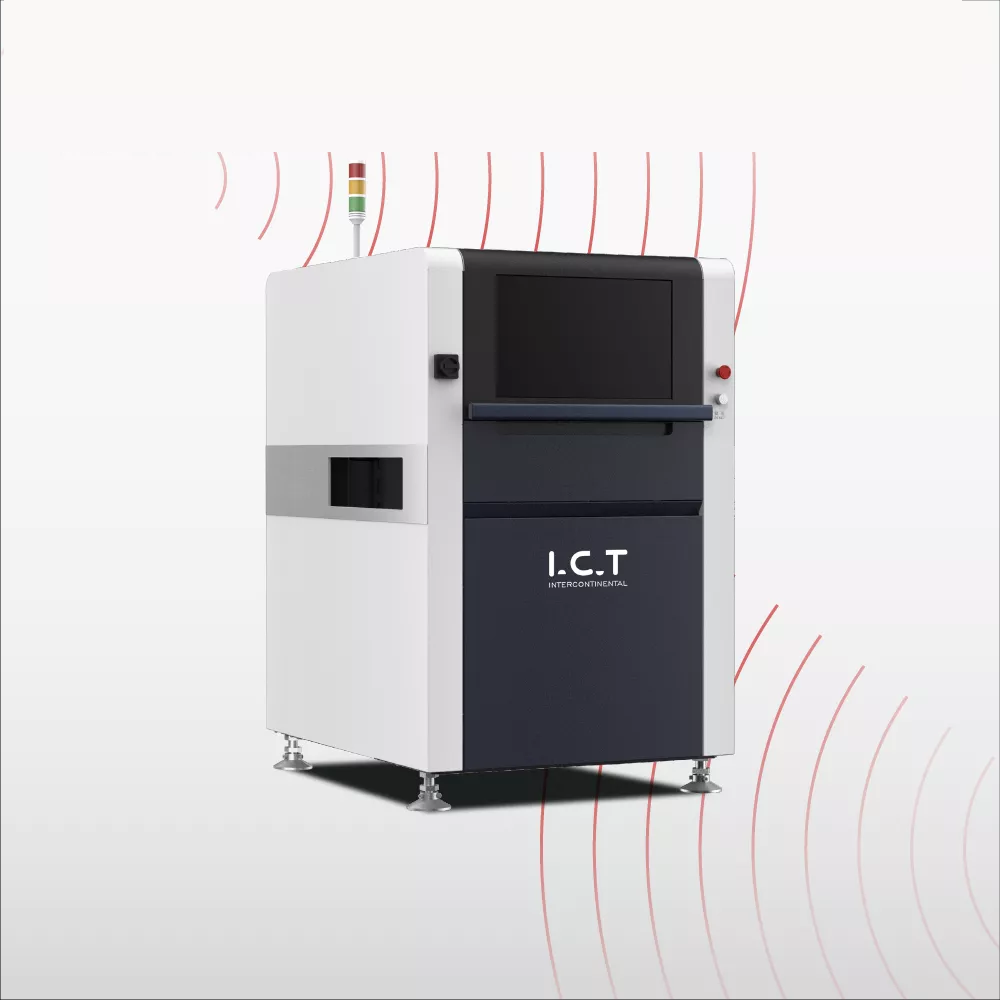

I.C.T AI-5146D Smt Production Pcb Visual Test Line Online Aoi Inspection Machine

Mini Component: 01005chip, 0.3pitch IC and Special shaped

FOV: 15um@60*45mm

Resolution: 15um

Camera: 5M pixel intelligent digital industrial camera(12M Optional)

Lens: Telecentric lens

Inspection Speed: 0.23sec/FOV

Rail: Dual rail

PCB Height: Top: 25mm, Bottom: 30mm

PCB Thickness: 0.3 ~ 6.0mm

PCB Edge: 3.7mm

PCB Warpage: ±3.0mm

PCB Weight: Max 3Kg

Conveyor Height: 900±20mm

With Adjustment: Manual & Auto

Conveyor Direction: L ~R or R ~L

Power: AC220 50/60Hz,5A

Rated power: 380W

Communication: SMEMA

Weight: 790Kg
