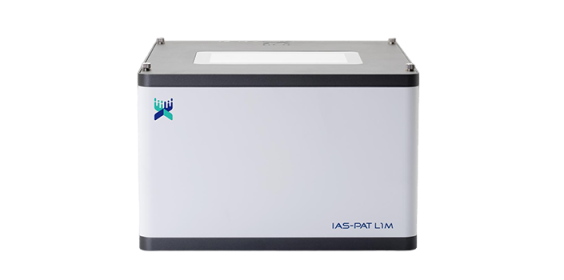

IAS Analysis IAS-PAT L1M Online NIR Analyzer (900 – 1700 nm)

Wavelength Range (NIR): 900 – 1700 nm

(Typically used: 950 – 1650 nm)

Resolution: < 16 nm

Spectroscopic Principle: Grating

Detector: InGaAs Detector (256 pixels)

Baseline Noise: ≤ 0.0002 AU

Wavelength Repeatability: ≤ 0.1 nm

Wavelength Accuracy: ≤ 1 nm (with built-in auto-detection & calibration)

Absorbance Repeatability: ≤ 0.0002 AU

Detection Time: 0.1 – 60 s

Light Source: Integrating Sphere Tungsten Halogen Lamp

Auto-Calibration & Maintenance: Automatic wavelength calibration; Reference calibration

Dimensions: L 310 mm × W 340 mm × H 210 mm

Main unit: 14 kg

Explosion-proof cabinet: 54 kg

Power Supply: 100 – 240 VAC, 50 Hz

System & Environment

Display: 7-inch

Built-in Operating System: Linux

Vibration Resistance: 0.3 g @ 0.1 – 200 Hz

Operating Temperature: -30 – +45°C

Operating Humidity: < 90% RH
