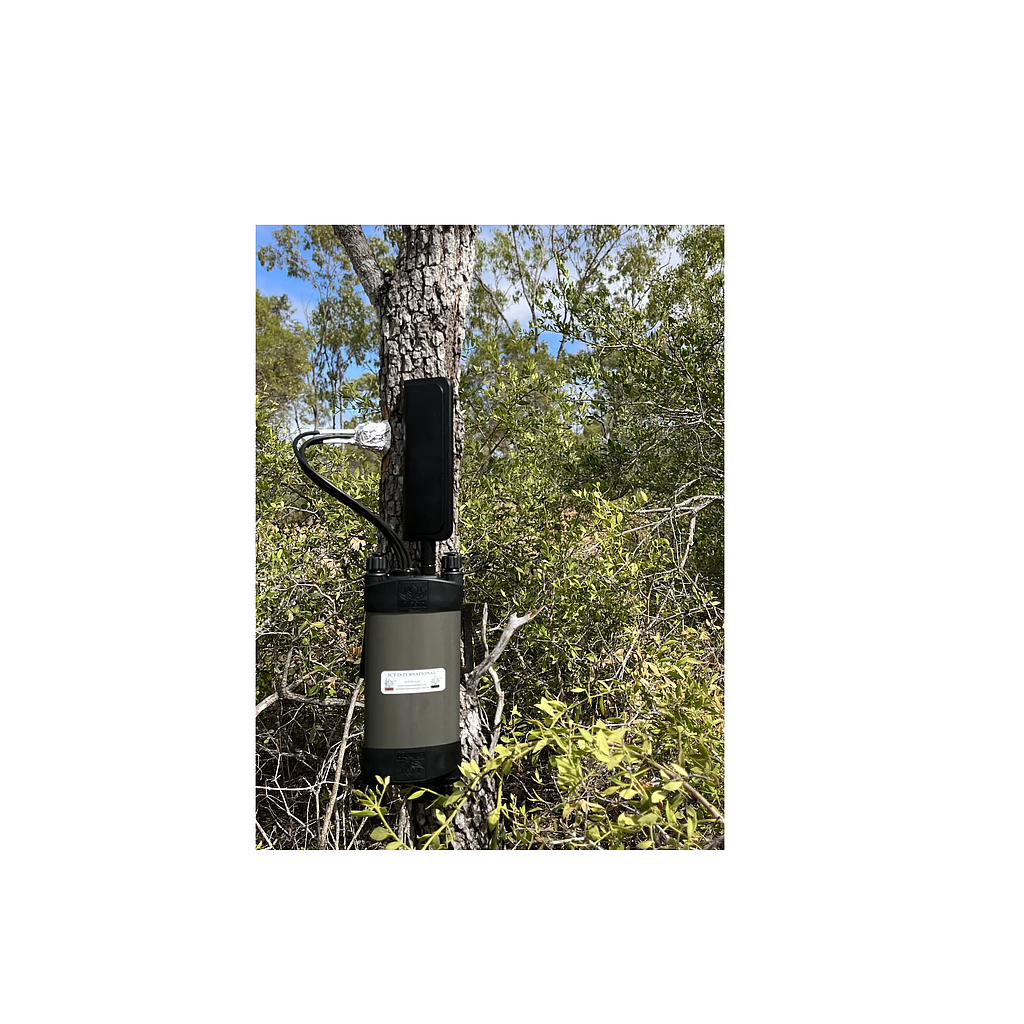

ICT International SFM1x-C Sap Flow Meter with IoT connectivity (-70 ~ +70 cm hr-1)

Needle Diameter/Length: 1.3 mm / 35mm

2 Measurement Spacings per Needle: 7.5 mm and 22.5 mm from the needle tip

Output Options:

Raw Temperatures: °C

Heat Pulse Velocity: cm hr-1

Sap Velocity: cm hr-1

Sap Flow: Litres hr-1

Measurement Range Approx: -70 ~ +70 cm hr-1

Resolution / Accuracy: 0.01 cm hr-1 / 0.5 cm hr-1

Measurement Duration: 120 seconds

Heat Pulse Default (User Adjustable): 20 Joules typical

Equivalent to 2.5 second heat pulse duration, auto scaling

Adjustable LoggingInterval Minimum: 10 mins

Communication: CATM1/NB-IoT
