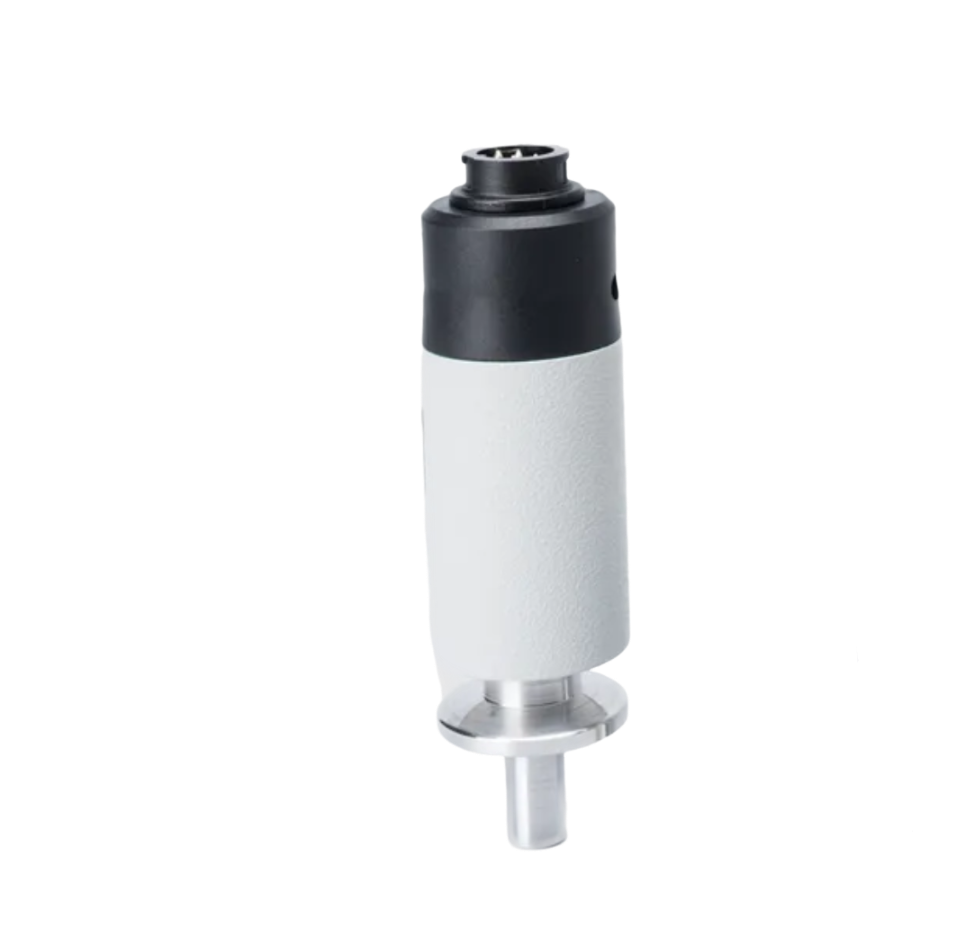

INFICON PSG010 Pirani Passive Gauge Heads (DN 10 ISO-KF)

Measurement system: Pirani

Display range (air, O2, CO, N2): 8 × 10^-4 … 1000 mbar

Measurement range (air, O2, CO, N2): 1 × 10^-2 … 100 mbar

Accuracy (N2) in the range of ≥ 100 mbar: up to factor 2 of reading ~±20% of reading in the range of 1 × 10^-1 ... 10 mbar

Accuracy (N2) at room temperature and cable length <20 m: up to factor 2 of reading in the range of ≤10^-2 mbar

Repeatability (N2): ~±2% of reading in the range of 1 × 10^-2 ... 100 mbar

Mounting orientation: any

Ambient, in operation with standard cable: 0 … +70 °C

Bake-out: 100 °C

Storage: –

Relative humidity: ≤80% at temperatures ≤+31 °C, decreasing to 50% at +40 °C

Use: indoors only, altitudes up to 2000 m

Maximum cable length: depending on measurement board

Overpressure: ≤9 bar (limited inert gases)

Protection category: IP 40

Materials exposed to vacuum:

Feedthrough: glass

Internal seal: FPM

Filament / holder: W/Ni

Chamber wall: AlMgSi

Weight: 0.14kg
