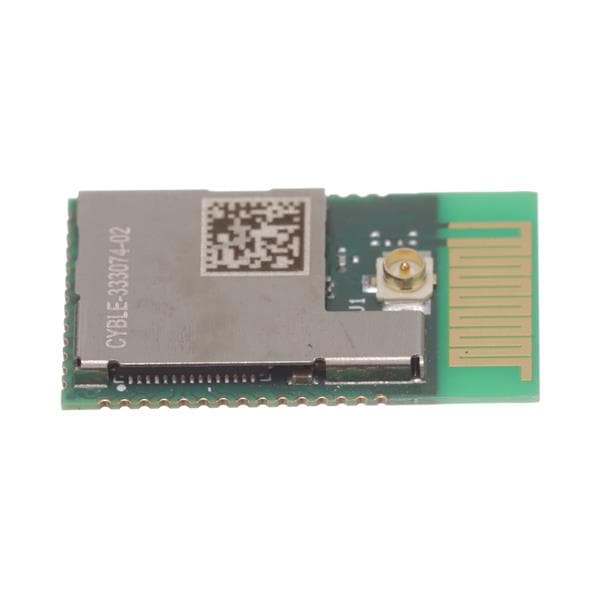

Infineon CYBLE-333074-02 USB 어댑터 BLE 산업용 및 IoT

Core: ARM Cortex-M4

Width: 13.31 mm

Height: 1.95 mm

Length: 21.89 mm

Protocol: BLE, Bluetooth 3.0

Data Rate: 1 Mb/s

Frequency: 2.48 GHz

Shielding: Shielded

Dimensions: 21.89 mm x 13.31 mm x 1.95 mm

Memory Size: 512 kB

Output Power: 12 dBm

Interface Type: I2C, UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Modulation Technique: GFSK

Receiver Sensitivity: - 94.5 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.5 V

Antenna Connector Type: U.FL

Operating Supply Voltage: 2.5 V to 3.6 V

Supply Current Receiving: 8 mA

Supply Current Transmitting: 18 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
