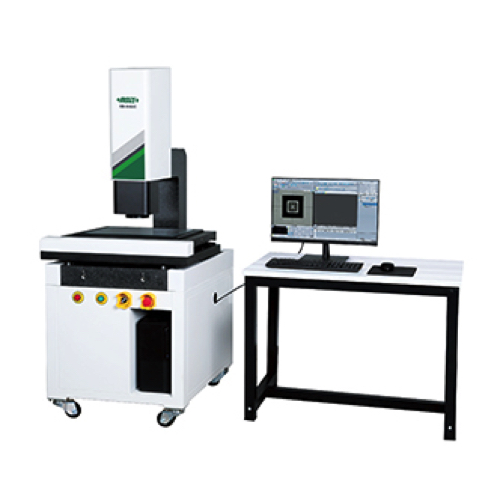

INSIZE ISD-K322 CNC Vision Measuring Systems (Advanced Type) (300×200×200 mm)

Measuring range (XxYxZ): 300×200×200mm

Stage size: 620×380mm

Glass stage size: 360×260mm

Resolution of X/Y/Z axis: 0.5µm

Accuracy of X/Y axis: ≤(2.0+L/200)µm (L is the measuring length in mm)

Repeatability: 2μm

Objective: 0.6X~8.0X (13.3:1 continuous zoom ratio)

Working distance: 83mm

View field (diagonal length): 0.81~10.72mm

Magnification: 27X–356X (on 23.8" monitor)

Camera: 1/1.2" color CCD, 2.3M pixel

Max. height of workpiece: 200mm

Illumination (surface): coaxial light, three-ring eight-zone adjustable ring light

Illumination (contour): adjustable LED light

Operation system: Windows 10/11

Max. weight of workpiece: 35kg

Drive method: automatic

Environmental requirement: temperature: 20°C±5°C, relative humidity: 20%~80%, vibration: <0.002g, less than 15Hz

Power supply: 190~230V, 50Hz, 1500W

Dimension (L×W×H): 620×780×1750mm

Net weight: 350kg

Datasheet

STANDARD DELIVERY

Main unit: 1pc

Dongle: 1pc

Software: 1pc

Lens with coaxial light: 1pc

Controller: 1pc

Computer: 1pc

Calibration glass chart: 1pc

Desk: 1pc

Clay: 1pc

Anti-dust cover: 1pc
