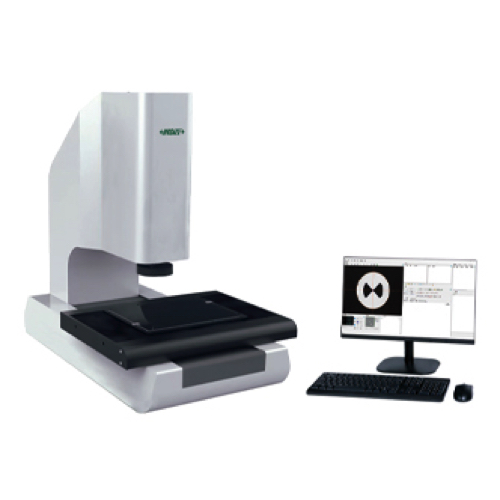

INSIZE ISD-P222 CNC Vision Measuring Systems (Advanced Type) (200 × 200 × 200 mm; 575 × 465 mm)

Measuring range (X×Y×Z): 200 × 200 × 200 mm

Stage size: 575 × 465 mm

Glass stage size: 230 × 230 mm

Resolution of X/Y/Z axis: 0.1 μm

Accuracy of X/Y axis: ≤(1.4 + L/200) μm (L is the measuring length in mm)

Repeatability: 1.4 μm

Objective: 0.6X ~ 8.0X (zoom)

Working distance: 65 mm

View field (diagonal length): 0.94 ~ 12.3 mm

Magnification: 25X ~ 338X (on 22" monitor)

Camera: 1/1.7" color CCD, 2.3M pixel

Max. height of workpiece: 135 mm

Illumination (surface): coaxial light, six-ring eight-zone adjustable ring light

Illumination (contour): adjustable LED light

Operation system: Windows 10/11

Max. weight of workpiece: 25 kg

Drive method: automatic

Environmental requirement: temperature 20°C ± 2°C; relative humidity 30% ~ 80%; vibration < 0.002g, < 15 Hz

Power supply: 200 ~ 240 V, 50/60 Hz, 700 W

Dimension (L × W × H): 740 × 1040 × 1762 mm

Weight: 330 kg

Datasheet

STANDARD DELIVERY

Main unit: 1pc

Dongle: 1pc

Software: 1pc

Lens with coaxial light: 1pc

Controller: 1pc

Computer: 1pc

Calibration glass chart: 1pc

Desk: 1pc

Clay: 1pc

Anti-dust cover: 1pc
