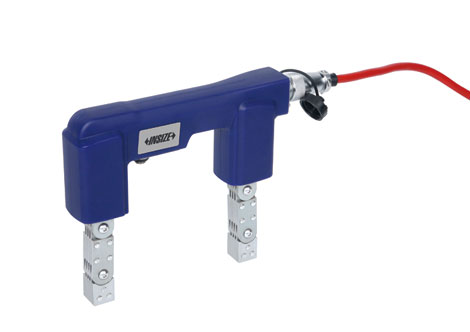

INSIZE MPI-M510-K 휴대용 자기 결함 탐지기 (British type power cord; >=4.5kg)

Specification

Code: MPI-M510-P

Amps: AC 2.5A

Sensitivity: 15/100 engraved groove clearly displayed on A1 standard sensitivity test piece

Duty cycle: >50% maximum excitation time 30 seconds

Lifting Power: >=4.5kg(44N)

Magnetic pole spacing: 50-195mm

Power supply: AC220V, 50Hz

Power cord: British type

Operation temperature: -10-40°C

Dimension(LxWxH): 220×42×175mm

Weight: 2.3kg

Standard Delivery:

Main unit: 1pc

■ Conformity to standards JB/T7411-2012 ASTM E709-08 ASTM E1444

EN10228-1:1999 ISO 9934

■ Light weight ergonomic design reduces operator muscle fatigue

■ Magnetic pole feet of the movable joints can make good contact with any shape of parts
