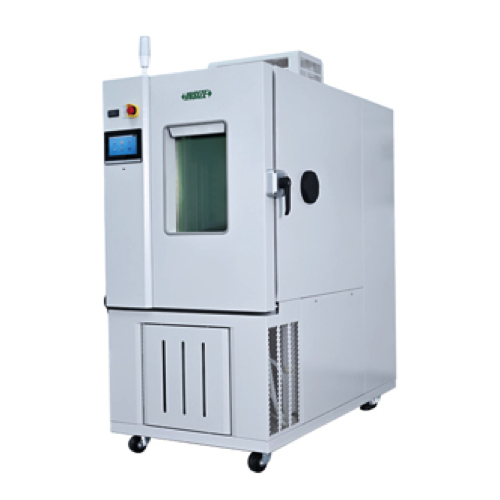

INSIZE THT-M458 고속 온도 및 습도 챔버 (14kW; 1000L; -40°C ~ 150°C)

Chamber Dimensions (LxWxH): 1000 * 1000 * 1000mm

Chamber Volume: 1000L

Temperature Range*: -40°C ~ 150°C

Humidity Range: 20%RH ~ 98%RH

Temperature Deviation: ±2°C

Temperature Fluctuation: ±0.5°C

Temperature Uniformity: ≤ 2°C

Humidity Deviation: ±3%RH (>75%RH), ±5%RH (≤ 75%RH)

Humidity Fluctuation: ±3%RH

Humidity Uniformity: ≤ 5%RH (> 75%RH), ≤ 7%RH (≤ 75%RH)

Heating and Cooling Rate**: Average rate 5°C/min

Material: Inside: stainless steel plate; Outside: galvanized steel plate with powder coating

Cooling System: Water-cooled

Operating Environment: Temperature: 5°C ~ 35°C; Humidity: ≤ 85%RH

Power Supply: AC380V, 3-phase, 50Hz

Power Consumption: 24kW

External Dimensions (L×W×H): 1200 * 2913 * 2450mm

Weight: 1400kg

*Other temperature range can be customized

**Other heating and cooling rate can be customized, up to 15°C/min
