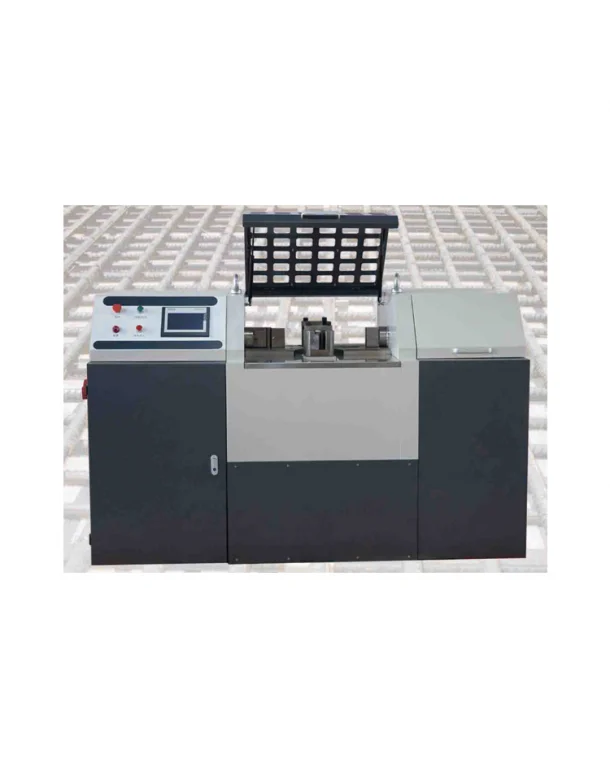

IWINTESTING GW40 Full Automatic Steel Rebar Bend And Rebend Testing Machine (500 kN;2,200 kg)

Drive method: Hydraulic drive

Bending force: 500 kN

Sample diameter range: 6 - 40 mm

Support span: 100 - 420 mm

Power supply: 5 kW / 380V / 50Hz

Weight: 2,200 kg

Bending speed: ≤ 20° per second

Forward bending angle: 180°

Reverse bending angle: 90° ± 20°

One host;

Siemens PLC control system

Bending core is equipped according to actual needs (see the bending core specification configuration table for details);

1 set of hydraulic station;

1 set of protective cover (installed on the host);

Product certificate, instruction manual, random tools, etc.
