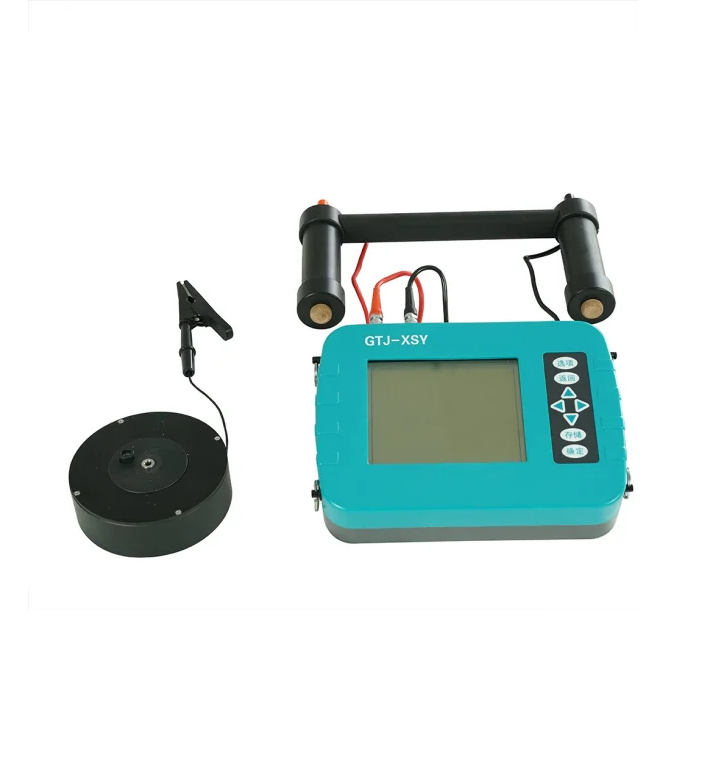

IWINTESTING IWIN-XSY Rebar Corrosion Detector (± 1,000 mV)

Potential electrode: Size: Φ30 mm × 120 mm; Weight: 100 g

Host parameters

Waterproof rating: IP65

Screen size: 5 inches

Dimensions: 195 × 140 × 45 mm

Weight: 0.8 kg

Power supply: Built-in lithium battery

Potential measurement range: ± 1,000 mV

Test accuracy: 1 mV

Measuring point spacing: 1 cm ~ 100 cm (1 ~ 2,500 px)

Data storage capacity: 5,400 survey areas / 228,000 data points

Working temperature: -10 °C ~ 40 °C

Packing specification

Material: Engineering plastic

Case dimensions: 420 × 140 × 335 mm

Total weight: 5.5 kg

New upgrade, three - proof shell design, waterproof, dustproof, shockproof;

IWIN-XSY Rebar Corrosion Detector adopts the polarization electrode principle and measures the surface potential of concrete through the copper/copper sulfate reference electrode. It judges whether the steel is corroded and the degree of corrosion according to the potential size generated by the steel corrosion or the potential gradient formed.

Measure the surface potential of concrete so as to achieve the non-destructive testing of corrosion degree of steel reinforcement in concrete;

Store the potential value at the corresponding position of each measurement area and display it graphically, and transfer the data to the upper computer software, and operate on it.
