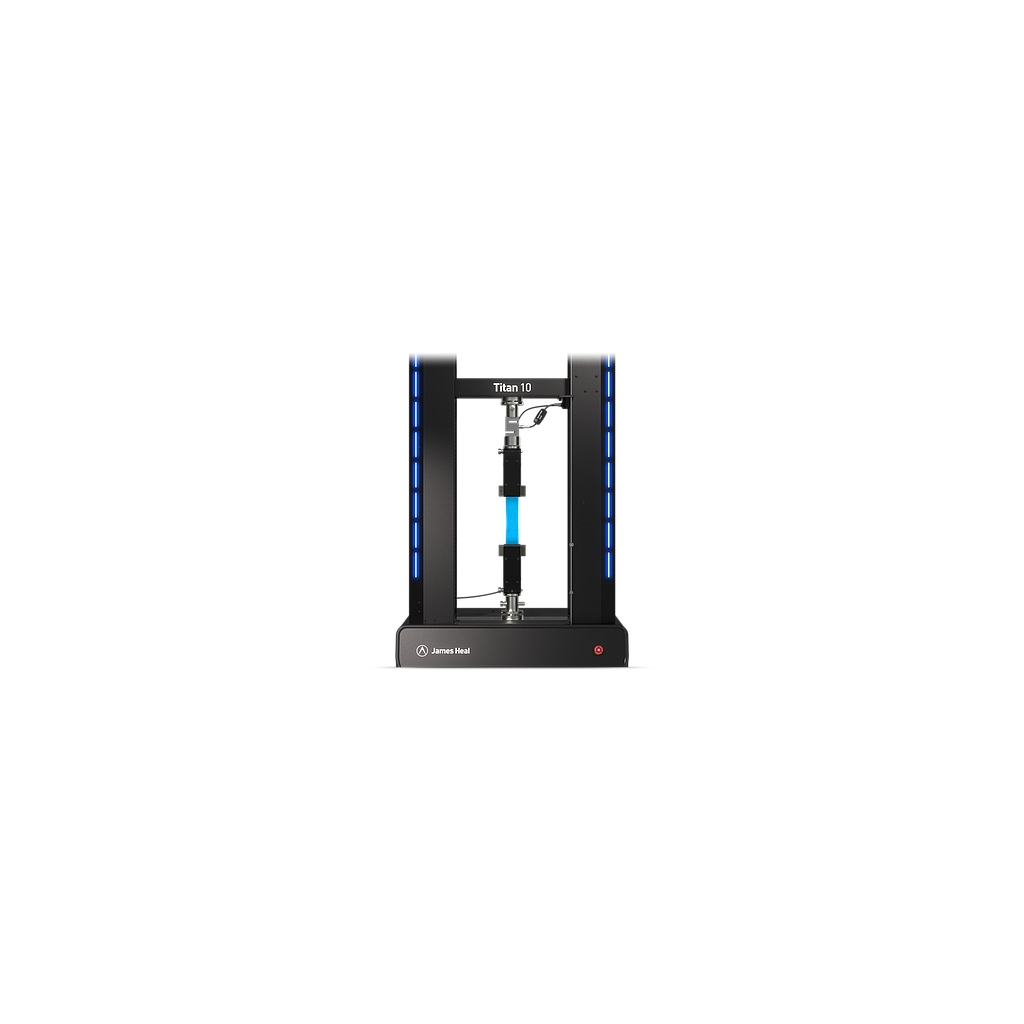

James Heal Titan 10 10 kN Universal Testing Machine

OS: Windows® 8, Windows® 7, Windows® 10

HDD: Minimum 250GB

Depth: 603 mm (23.75)

Ports: 2x USB 2.0 ports

Width: 1090 mm (42.9")

Height: 1576 mm (62")

Positioning: Bench standing

Speed accuracy: ±0.003%

Instrument only: 230 kg (507 lbs)

Vertical stroke*: 900 mm

Positional accuracy: ±0.00167 mm

Instrument with guard: 261 kg (575.4 lbs)

Capacity (Tension/Compression): 10000 N 10 kN 1000 kgf 2204.6 lbf

Conditioned atmosphere recommended: Yes
