Peak power: 800W (230V)
Selectable temperature: 50 to 250 ºC / 120 to 482 ºF
Heating area:
65 x 135 mm / 2.6 x 5.3 in - 1 zone
130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector: 4 for Control & Protection
Profiles: 22 (up to 16 steps for each)
Set temperature profiles: 3 profiles (2, 3 or 4 steps)
Maximum work time: 50 min or indefinite
ESD safe: Meet ANSI/ESD S20.20-2021
USB-A: Firmware update/ Graphics and profiles
USB-B: PC communications
Robot connector: Remote control
Aux. connector: Console connection
Pedal connector: Connect a pedal (ref. P-005) to control the heater
Weight and dimensions
415 x 360 x 205 mm / 10.72 kg.
16.34 x 14.17 x 8.07 in / 23.63 lb.
PRODUCT COMPOSITION
1 Instruction Manual

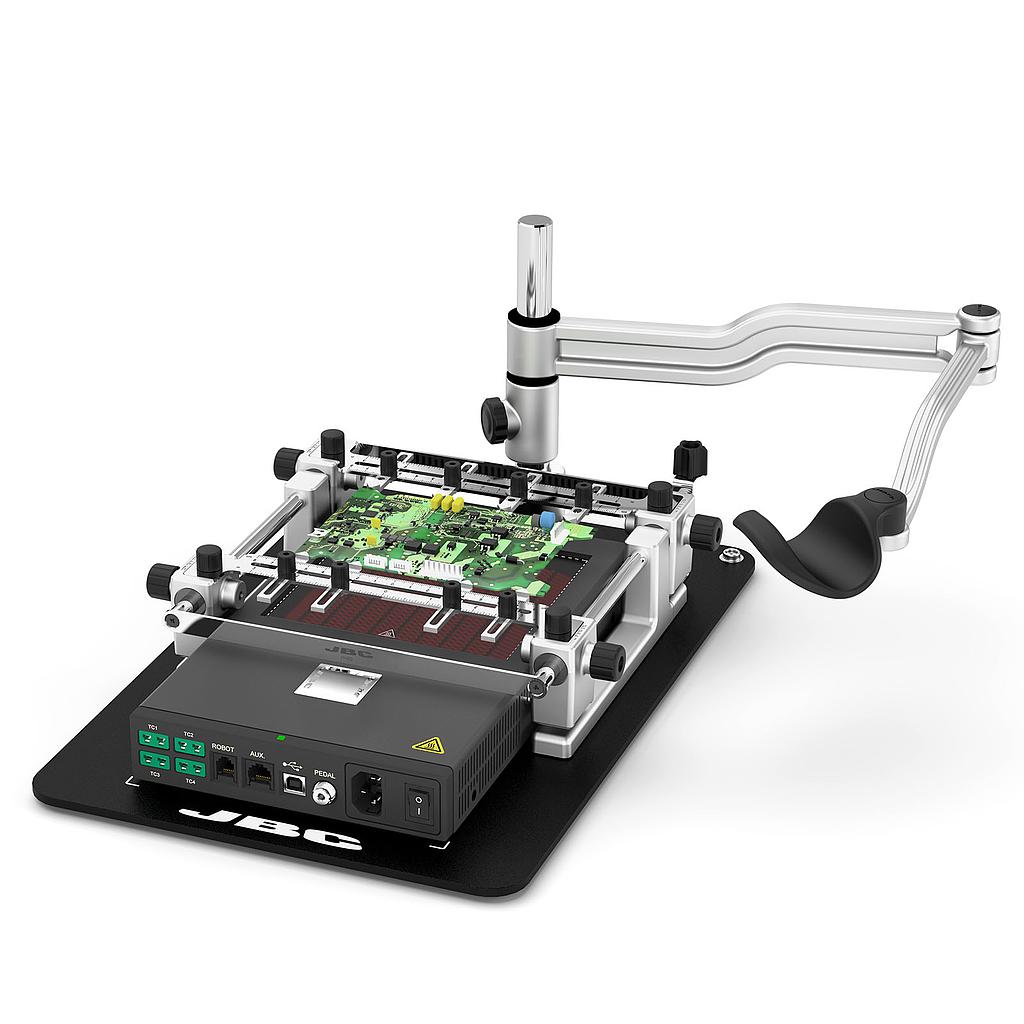

1 PHSE Preheater for PCBs up to 13 x 13 cm / 5 x 5 in
1 PHSS Support for PCBs up to 13 x 13 cm / 5 x 5 in
1 RHS Articulated Hand Rest for PHSEK Preheater Set
