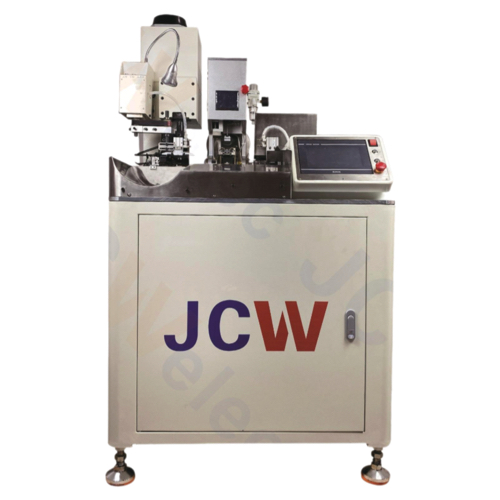

JCW JCW-CST11 Fully Automatic Wire Sealing and Crimping Machine (0.08-1.3 mm², 50-99999 mm, 1.5-10 mm)

Function: Wire measuring and cut into length, Double sides stripping, Single side sealing, Single side crimping, Sealing alarm, Sequence work

Wire range: 0.08-1.3 mm² [AWG 28-16]

Seal type: O.D. x Length < 15 mm x 14 mm

Cut length (L): 50-99999 mm

Cut accuracy: 1 mm ±0.002 x L

Strip length: 1.5-10 mm

Crimping force: 2 tons [3 tons on request]

Data library: 100 programs

Air supply: 0.4-0.6 MPa [clean and dry air]

Power supply: AC 110V-220V ±10%, 50/60 Hz

Dimensions: L 700 x W 800 x H 1500 mm, 360 KG

Display: 7" touch screen, English / Chinese [other languages on request]

Product rate: 3000 pcs/h by 100 mm wire length [Sealing & Crimping]
