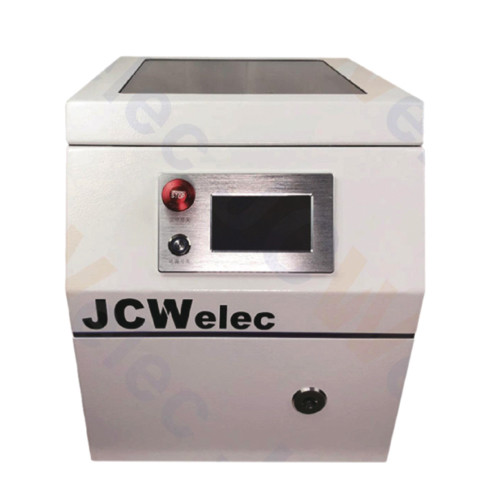

JCW JCW-F1 Wire Stripping Twisting & Ferrule Crimping Machine (17 mm, 6-12 mm)

Conductor cross-section: 0.5, 0.75, 1.0, 1.5/2.5, 4.0 mm² [changing vibrate bowl]

Stripping length: Max 17 mm

Crimping shape: Quadrilateral [imitating square]

Crimping length: 6-12 mm

Cycle time: 2.5 seconds

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Customize logo: Yes

Data library: 8 programs

Air supply: 0.6-0.8 MPa (clean and dry air)

Power supply: AC 110V-220V±10%, 50/60 Hz

Dimensions: L 350 x W 450 x H 430 mm

Weight: 50 KG
