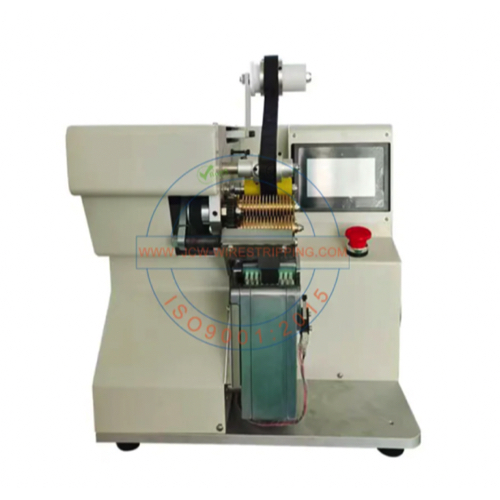

JCW JCW-T01E Fully Electric Spot Taping Machine (1-8 mm)

Function: Bundling, insulating, and marking. Fully programmable. PVC tape, acetate cloth electrical tape, brown paper tape, etc.

Tape width: 5-45 mm (customizable)

Brush width: 20 mm / 30 mm on request for short taping needs

Taping length: 50-99 mm

Tape roll diameter: 32-100 mm (customizable)

Wire harness diameter: 1-8 mm

Production rate: 1200-2000 pcs/h

Coincidence accuracy: 0.5 mm

Power supply: AC 110-220 V, 50/60 Hz

Dimensions: L 370 x W 495 x H 530 mm

Weight: 45 KG

• A fully electric taping machine needs no compressed air

• Fully programmable, tape width 5-45mm (customizable)

• 20mm/30mm width brushes for short taping needs

• Optional cable locating device

• Optional paper coiler for acetate cloth electrical tape

• Duct tape, PVC tape, Masking tape, Acetate cloth tape, etc
