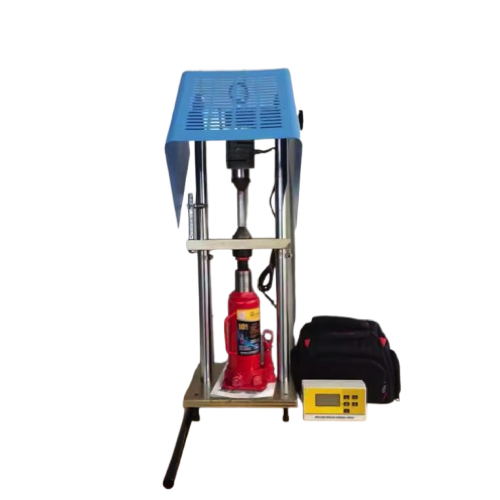

Jeweltest STDZ-3 Digital Point Load Strength Tester (100Mpa)

The jack

Max working pressure: 100Mpa

Piston diameter: 36mm, Piston stroke: 160mm

Rated load capacity in the sensor : 100KN

The tester:

Boundary dimensions: 280mm*250mm*700mm

Net weight: 44kg

Sample specification

Max load point space: 120mm

Max width for sample : 90mm

Reading mode: LCD Display, electronic peak memory

Measuring accuracy: 0.01 KN ,<=1 % F. S

Working conditions: Temp range: -20°C-45°C

Power supply: rechargeable battery
