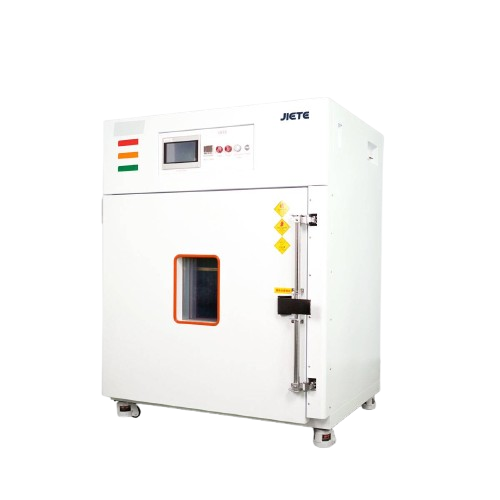

JIETE JPO-72-200 High Temperature Precision Oven (72L; RT+10℃~200℃)

Chamber Design:

Internal Volume (L): 72

Internal Dimensions (cm) (WxHxD): 45x40x40

External Dimensions (cm)(WxHxD): 80x122x64

Temperature Test Parameters:

Temperature Range (°C): RT+10℃~200℃

Analysis Accuracy (°C): 0.1

Heating Rate (°C/min): From room temperature to 100 degrees Celsius, 15 minutes; From room temperature to 200 degrees Celsius, 30 minutes

Single Point Volatility (°C): ±0.5

Distribution Bias (°C): ±2.0

Power supply and Connection (Subject To Actual Usage Configuration):

Power Supply (V/Hz): AC220V 50HZ

Maximum Current (A): 11.4

Maximum Power (KW): 2.5

Control Mode: PID+SSR

System Components:

Material Science:

Shell Material: Electrolytic board baking paint

Inner Liner Material: Heat resistant and cold resistant stainless steel plate

Thermal Insulation Material: High density insulation rock wool and insulation device, insulation thickness 100mm

Airtight Material: Airtight device resistant to -60 to 500 ℃

Heating System: Imported high-temperature heating wire is used for rapid heating

Circulating Fan: Adopting multi blade centrifugal circulating fans, strengthening the axis iron rotating blades, and evenly distributing the temperature field effect

Door Observation Window: Single door opening

Temperature Sensor: Platinum resistance PT100

Temperature Controller: Korean imported temperature controller/digital setting/PID automatic adjustment/deviation correction/timing function

Enclosure: A. Non fuse switch, over temperature protection switch B. Indicator lights and instructions for various actions C. Equipped with exhaust vent device D. Lead hole: Φ 50mm/100mm test hole and rubber plug

Features

Wide Temperature Range: The oven operates from ambient temperature up to 300°C, with customization options for higher temperature ranges, making it versatile for various high-temperature testing applications.

High-Precision Temperature Control: Advanced temperature control systems ensure stable and accurate temperature settings, with minimal deviation, for precise and repeatable test results.

Efficient Heating System: Equipped with high-efficiency heating elements, the oven rapidly reaches the desired temperature, reducing testing time and improving overall productivity.

Uniform Temperature Distribution: A well-designed air circulation system guarantees even heat distribution throughout the chamber, ensuring consistent testing conditions.

Customizable Features: The oven can be customized to meet specific requirements, such as increased temperature capacity, additional testing capabilities, or specialized chamber materials.

User-Friendly Interface: The intuitive control panel and touch-screen interface allow for easy setup, programming, and monitoring of testing parameters.

Energy-Efficient Operation: Built-in energy-saving features reduce overall power consumption while maintaining optimal performance and temperature stability.

Safety Features: Comprehensive safety mechanisms, including over-temperature protection, alarm systems, and automatic shutdown, ensure secure operation under all conditions.

Versatile Application: Perfect for testing a wide range of materials and components in industries requiring high-temperature environments, such as electronics, automotive, and manufacturing.
