AC Withstand Voltage Test: Rated Output: 5KV AC / 20mA
DC Withstand Voltage Test: Rated Output: 6KV DC / 7.5mA
Even the Wave: <5%D 6KV DC / 5mA Resistance Under Load
Voltage Regulation: ±(1% Setting + 5V) No Load to Full Load
Arc Detection: 0-9 Sections: 0 = OFF
PLC Remote Control:
Input: Test, Reset, Memory 1, 2, 3, Interlock
Output: Pass, Fail, Processing, Reset-Out
Test Failure Alarm: Buzzer
Storage Group: 10 Groups, 3 Steps in Each Group
Safety Lock Keyboard: Can choose to "Lock" or "Not Locked" two modes
LCD: 128 x 64 LCD Screen
Corrected Mode: The Front Panel Software Correction
Input Characteristics: Single Phase 47-63Hz, 115/230Vac ± 15%, Optional, 3.15A Insurance
Work Environment: 0-40℃ / 20-80% RH
Dimension (WHD): 280 x 100 x 380 mm
Datasheet
Manual

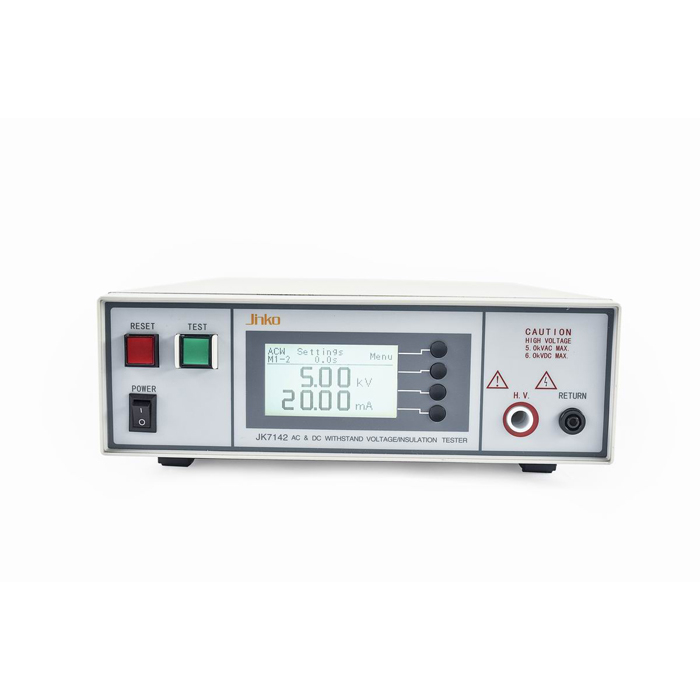

Product Description: Large 128*64 Graphic LCD display Single and 7305 grounding impedance tester connected with standard 19 inch instrument.
Characteristics
l Three testing options are available:ACW, DCW, IR
l Large 128*64 Graphic LCD display
l Single and 7305 grounding impedance tester connected with standard 19 inch instrument.
l Can also carry out 100 online test
l Built in 10 sets of program memory, each group of 3 test steps can be carried out in the process of memory test link test
l Communication speed, baud rate up to 19600
l Fast discharge function, can be measured in 0.2 seconds on the electrical energy to complete, to ensure personnel safety
l Anti high voltage electric shock function, when the human body can be interrupted when the error output
l Post detection test, determine the test if is normal before the test function
l Front panel software input correction
l Date and time setting, correction time and the warning time can remind users
l Built in PLC Remote remote control interface
l Botton lock
l Security lock function
l Small size, light weight
