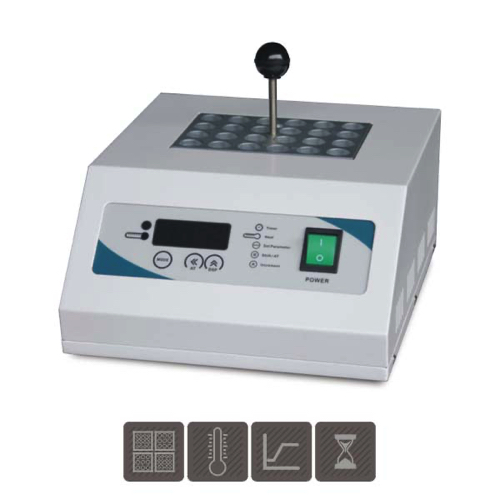

JSR JSBL-04T Dry Block Heater (400 Watt; 4 block)

Dimension Data

Block Capacity: 4 block

Inner Dims. (W x D x H mm): 130 x 180 x 50 mm

Block Dims. (W x D x H mm): 90 x 65 x 50 mm

Outer Dims. (W x D x H mm): 220 x 360 x 110 mm

Performance Data

Temp. Range: Amb. +5 °C ~ +180 °C, 0.1 °C Resolution

Accuracy: ±0.5 °C at 60 °C

Uniformity: ±3.0 °C at 60 °C

Heat up Time to 60 °C: 8 min

Controller

Processor: Digital Microprocessor PID Temperature Controller

Display: 4 Digit LED Display

Resolution: 0.1 °C

Timer Scale: 99 min 59 sec / 99 hr 59 min / 99 day 23 hr

Sensor: CLASS A PT-100 Ω Sensor

Safety Data

Safety Device: Dual Over Temp. Cut-Off

Sensor Disconnection Alarm: Yes

Over Current Cut-Off: Fuse

Heater Capacity: 400 Watt

Power Rating: 1.8 Amp
