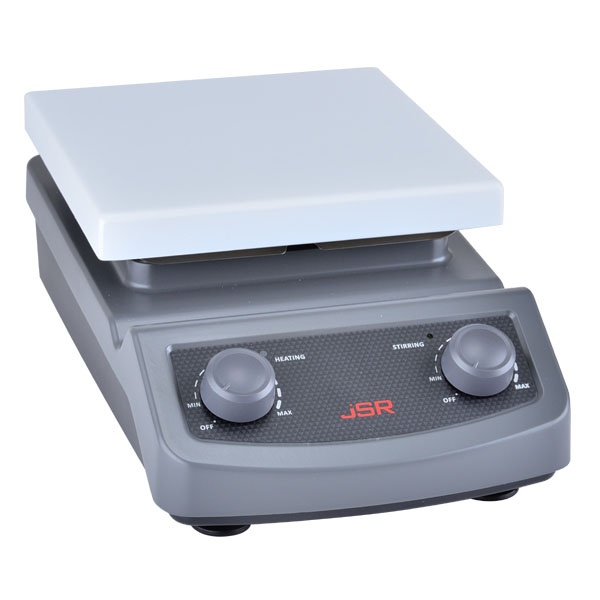

JSR JSHS-18A Analog Hotplate Magnetic Stirrer (400℃; 1500 rpm)

Performance Data

Temp. Range: Max. 400℃

Speed Range: Max. 1500 rpm

Usable Magnetic Bar: Max. 50 mm in Length

Stirring Capacity (H₂O): 20 Liters

Controller

Type: Fine PWM Heat Control

Speed Control: Stepless Speed Control

Independent ON/OFF Switch: Yes

Motor: Brushless Shade Motor

Heater: 600 Watt

Dimensions

Plate Dims. (W x D): 180 x 180 mm

Outer Dims. (W x D x H): 180 x 330 x 110 mm

Safety Data

Safety Device:

Over Temp. Cut-Off

Over Current Cut-Off

Material Data

Top Plate: Aluminum with Ceramic Coating

Body: Aluminum Casting with Epoxy Powder Coating

Base: Engineering Plastic

Electrical Data

Rated Voltage: 230 ±10% VAC

Power Frequency: 50/60 Hz

Nominal Power: 620 Watt, 3.0 amp

Phase: 1 Phase

Plug Configuration: CEE 7/7 Schuko or BS 1363

Usable Condition

Temp. & Humidity: 5℃ ~ 40℃, < 80% RH

Datasheet
