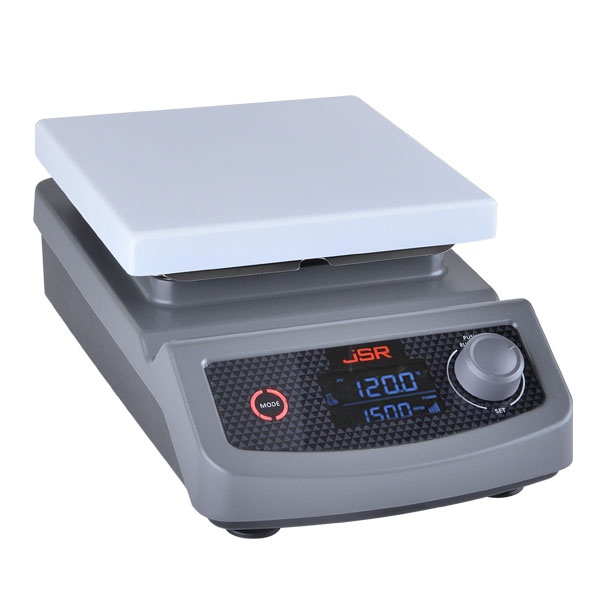

JSR JSHS-18DX Digital Hotplate Magnetic Stirrer (400℃; 80 ~ 1500 rpm)

Performance Data

Temp. Control Mode: Mode Selection (Oil or Water)

Temp. Range: Max. 400℃

Accuracy: ±0.3℃ at +200℃

Resolution (Display): 0.1℃

Resolution (Control): 0.5℃

Detached Magnetic Bar Detection: Yes

Speed Range: 80 ~ 1500 rpm

Stirring Quantity (H₂O): 20 L

Speed Resolution: 5 rpm

Usable Magnetic Bar: Max. 50 mm in Length

Timer: Max. 99 hr 59 min

Controller:

Digital Fuzzy Control with Capacitive Touch Button and Jog Dial

Full Size Digital Back Light LCD Display

Independent ON/OFF Switch

Heater and Motor

Heating Output: 600 Watt

Temp. Sensor: CA Type Embedded Sensor

Motor: 30 Watt BLDC Motor

Dimension Data (W x D x H mm)

Plate Dims.: 180 x 180 mm

Overall Dims.: 180 x 325 x 110 mm

Safety Data

Safety Device:

Over Temp. Cut-Off

Over Current Cut-Off

Material Data

Top Plate: Aluminum with Ceramic Coating

Body: Aluminum Casting with Epoxy Powder Coating

Base: Engineering Plastic

Electrical Data

Rated Voltage: 230 ±10% VAC

Power Frequency: 50 / 60 Hz

Phase: 1 Phase

Nominal Power: 650 Watt, 3.0 amp

Plug Configuration: CEE 7/7 Schuko or BS 1363

Usable Condition

Temp. & Humidity: 5℃ ~ 40℃, < 80% RH
