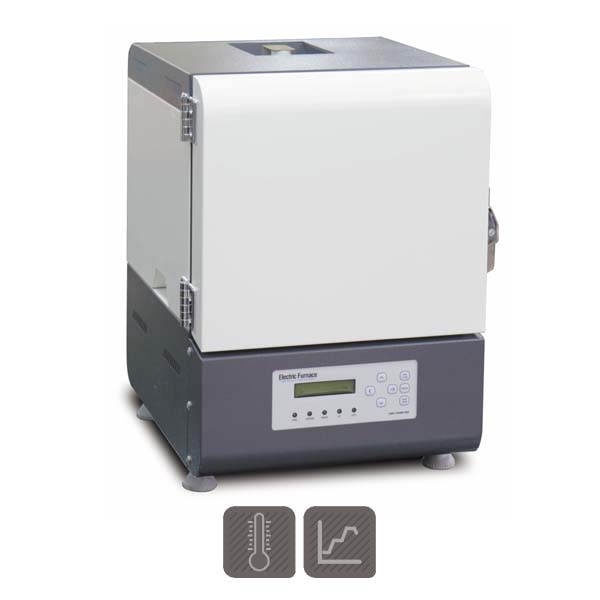

JSR JSMF-30HT Electric Muffle Furnace (1,200°C; 2.9L)

Chamber Volume (Capacity): 2.9 L

Inner Dims. (W x D x H): 130 x 250 x 90 mm

Outer Dims. (W x D x H): 435 x 480 x 560 mm

No. of Ventilation Damper: 1 EA

Heating Element: KANTHAL A-1

Maximum Temperature: +1,200℃

Operating Temperature: +1,100℃

Temperature Accuracy: ±3.0℃ at +500℃

Temperature Uniformity: ±3.0℃ at +500℃

Heat-up Time (to +800℃): 30 min.

Control System: Programmable PID Control

Memory: 3 Pattern Memory

Segments: 9 ramps and 9 dwells segments

Sensor: CA(K)-Type Sensor

Safety Features: Over-Temperature Cut-Off, Over-Current Cut-Off

Material (Body): Epoxy Powder Coated Steel, 1.0 mm thickness

Material (Chamber): Ceramic Fiber

Electrical Requirement: 220 ± 10% VAC, 50/60Hz, 1-Phase

Heater Capacity: 1.4 kW

Power Rating: 6.5 Amps

Plug Configuration: CEE 7/7 Schuko or BS 1363
