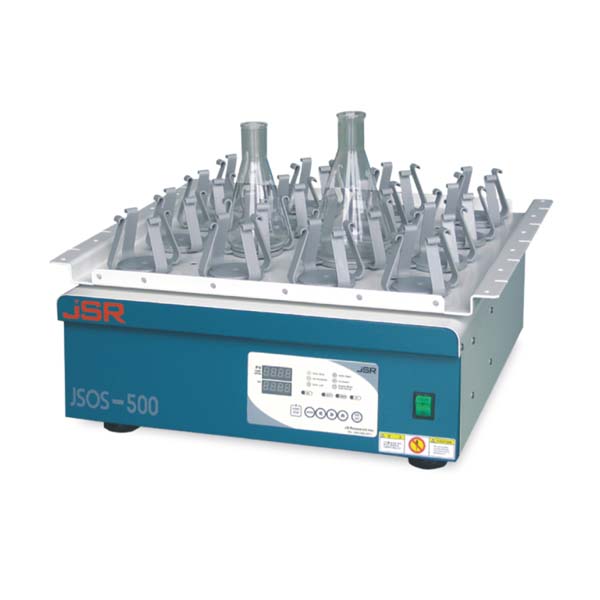

JSR JSOS-500 Tabletop Shaker (W495 x D495 mm; 20 ~ 350 rpm)

Platform Dims. (W x D): 495 x 495 mm

Oversized Platform Dims.: 700 x 650 mm

Outer Dims. (W x D x H): 545 x 565 x 350 mm

Max. Loading Capacity: 35 kgs

Primary Shaking Mode: Orbital

Secondary Shaking Mode: Reciprocal (with optional adaptor)

Shaking Speed Range: 20 ~ 350 rpm

Shaking Stroke: 20 mm

Shaking Speed Accuracy: ±1 rpm

Control System: Digital feedback RPM controller with automatic STOP timer

Timer Range: Max. 99min 59sec / 99hr 59min / Continuous

Display Type: 4-digit dual digital LED (Displays RPM and TIME)

Safety (RPM): MAX RPM Cut-Off and Audio-Visual Alarm

Safety (Motor): Motor Failure Alarm

Safety (Current): Over-Current Cut-Off Fuse

Material (Body): Epoxy Powder Coated Steel, 1.0 mm thickness

Electrical Requirement: 220 ± 10% VAC, 50/60Hz, 1-Phase

Power Rating: 0.5 Amps

Plug Configuration: CEE 7/7 Schuko or BS 1363

Net Weight: 35 kg
