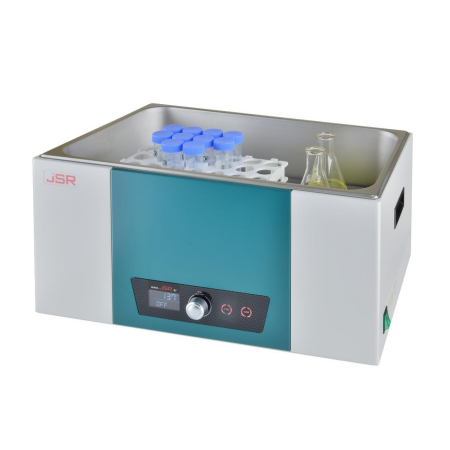

JSR JSWB-22T 디지털 수조 (22L, Amb. +5°C ~ 120.0°C)

Bath Volume: 22 Liters

Inner Dims. (W x D x H mm): 500 x 300 x 150

Usable Dims. (W x D x H mm): 500 x 300 x 110

Outer Dims. (W x D x H mm): 545 x 345 x 270

Heating System: Immersed Heating Element

Temp. Setting Range: Amb. +5°C ~ 120.0°C

Control

Digital Microprocessor PID Temperature Controller

3-Zone Temperature Control Algorithm

3-Point Temperature Calibration

1-Point Temperature Offset Calibration

Sensor: Class A Pt-100 Ω Sensor

Safety

Over-Temperature Cut-Off

Over Current Cut-Off

Material

Body - Epoxy Powder Coated Steel

Bath – Electro-polished Seamless Stainless Steel 304

Heater Cover – Perforated Stainless Steel 304

Electric: 220±10% VAC 50/60Hz 1-Phase

Heater Output: 1.5 kW

Net Weight: 10.0 kg

Datasheet
