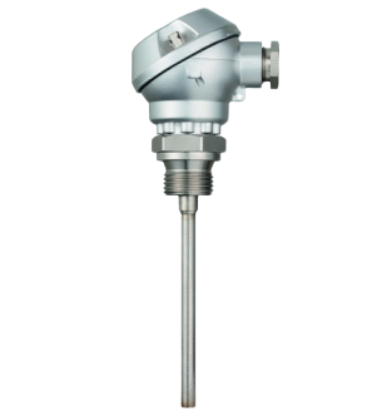

Jumo 902030 Screw-in RTD temperature probe (-50~+200°C, Part No.: 00533450)

Order code:  902030/10-380-2003-1-6-50-104/000

Operating temperature in °C: -50 to +200 °C

Measuring insert: 2× Pt100 in two-wire circuit

Tolerance class according to DIN EN 60751:2009 / IEC 60751:2008: Class B (standard) (-50 to +500 °C)

Protection tube diameter D in mm: Ø 6 mm (standard)

Insertion length EL in mm (EL 50 to 1000) (max. 800 mm for basic type 902030/11): 50 mm

Process connection (further process connections upon request): Screw connection G 1/2

Extra codes: None

Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases.
