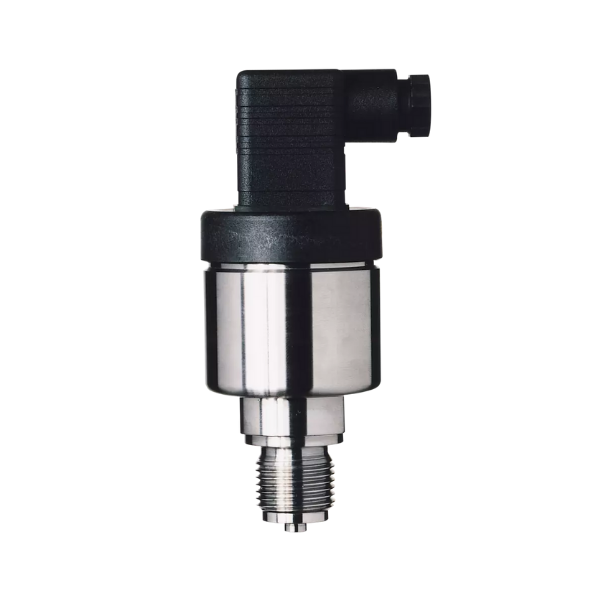

Jumo dTRANS ceramic Pressure transmitter (0~50 mbar relative pressure)

Order code: 404327/412-405-504-26-36

Input: 0 to 50 mbar relative pressure

Output: 4 to 20 mA, two-wire

Process connection: G 1/2 according to DIN EN 837

Material process connection: CrNi (stainless steel), mat.-ref. 1.4571

Electrical connection: Round plug M12 × 1

The product acquires the pressure of liquid and gaseous media with the help of a capacitive ceramic sensor. The value is then converted into an electrical signal. The transmitter is used in such fields as medical technology.
