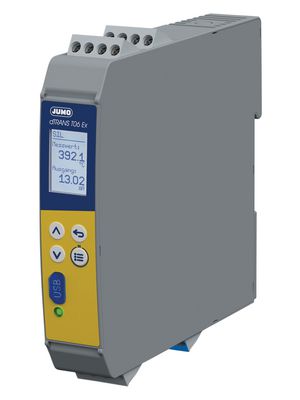

Jumo dTRANS T06 Ex Multifunctional four-wire transmitter in mounting rail case with SIL and Ex approval (RTD: -200 ~ +850°C, TC: -270 ~ +2500°C)

Order code: 707075/8-29-053

Measuring range:

  RTD temperature probe: -200 to +850 °C

  Thermocouples: -270 to 2500 °C

Version: Standard with default settings

Voltage supply: DC 24 V +10/-15 % SELV or PELV

Extra codes: None

Above all the JUMO dTRANS T06 Ex multifunctional four-wire transmitter is characterized by its high level of safety. The multipurpose unit of the brand JUMO Safety Performance allows the establishment of safe temperature measuring chains (SIL 2 or 3), which allow the temperature sensor to be used in Ex zone 0

Special features: Universal input for a number of sensors and standard signals, intuitive operation and configuration on the device or via USB interface with setup program, RS485 interface with Modbus RTU, intelligent additional functions such as min/max drag indicator, operating hours counter and output simulation SIL 2/SIL 3 according to DIN EN 61508 and PL c/d according to ISO 13849, Ex approval according to ATEX and IECEx, sensor matching for RTD temperature probe, customer-specific linearization, high degree of galvanic signal separation, connection diagram available in the display
